Status
Available
Description

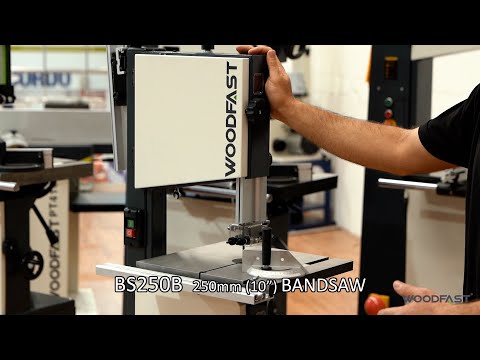

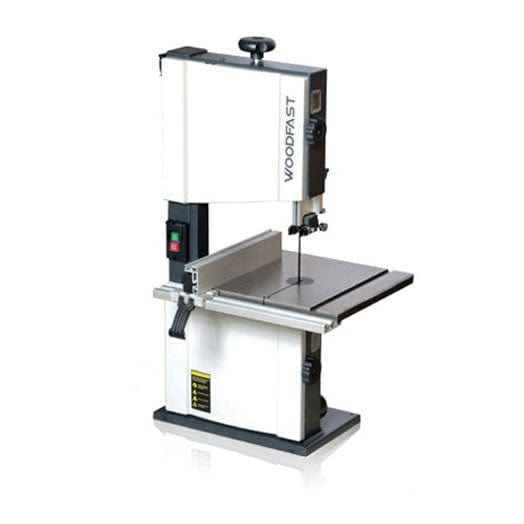

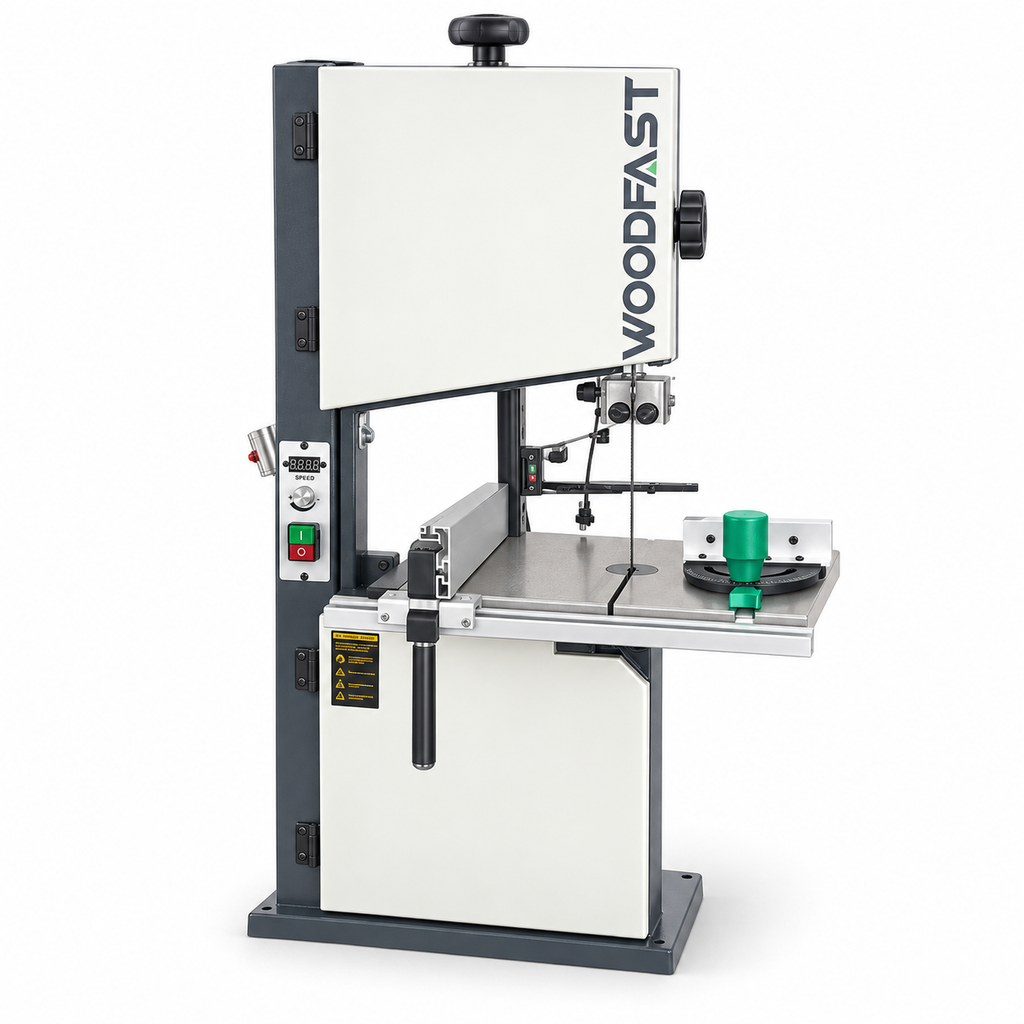

The Woodfast BS250B 250mm (10") Bandsaw brings many of the features associated with larger floor-standing bandsaws to a compact benchtop design.
Its strong steel frame, cast-iron worktable and balanced 254mm cast-aluminium bandwheels provide a stable platform for straight cuts, curved work and general timber preparation. With a 245mm throat capacity and 120mm maximum cutting height, the BS250B is well suited to small furniture projects, cabinetry, craftwork, toy making and general workshop use.
A spring-loaded, tool-less blade-guide system makes blade setup faster and easier, while the rack-and-pinion upper guide adjustment allows the cutting height to be positioned accurately. The quick-release blade-tension lever lets the operator remove blade tension when the machine is not in use, helping protect the blade and bandsaw tyres.
Two selectable blade speeds—460m/min and 1,000m/min—provide flexibility for different cutting applications. An aluminium rip fence with cam lock and the supplied mitre gauge help guide material for controlled straight, angled and crosscuts.

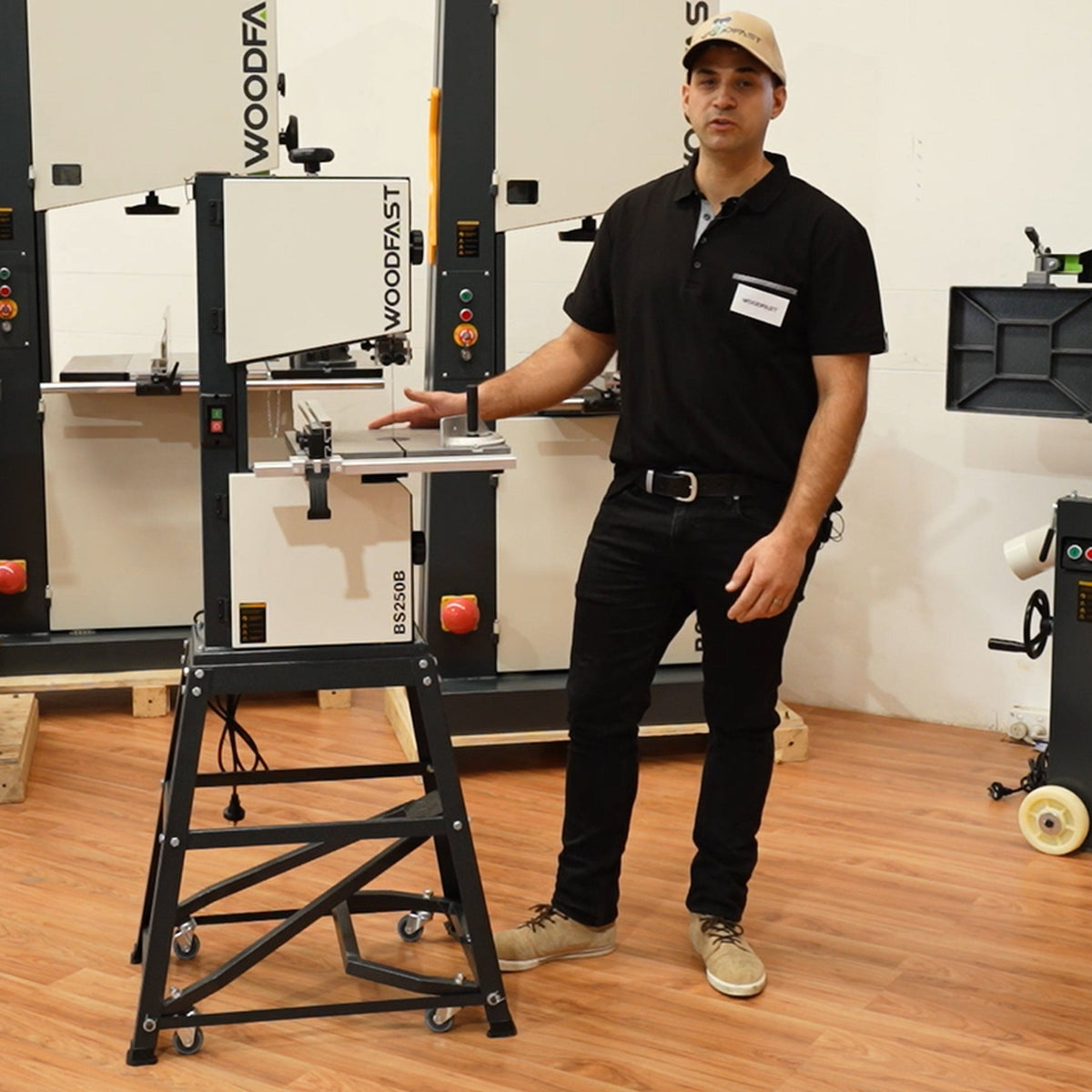

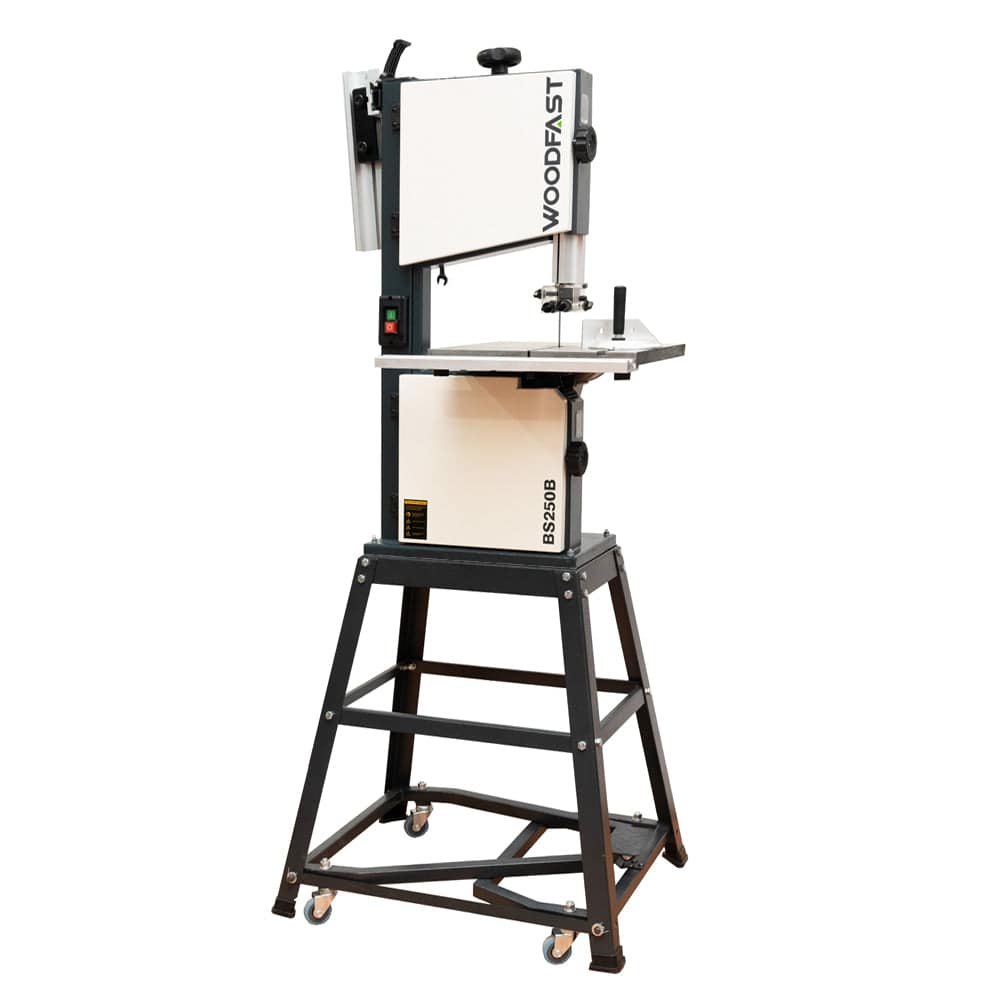

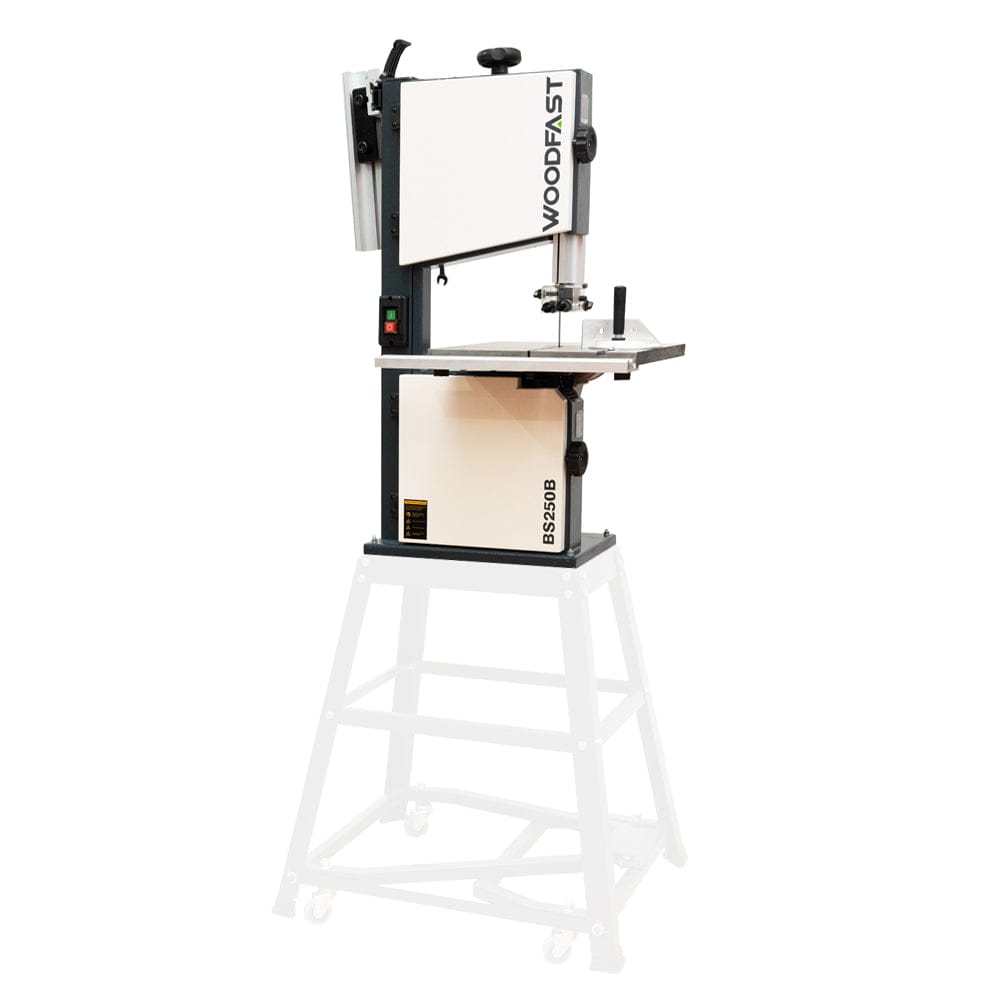

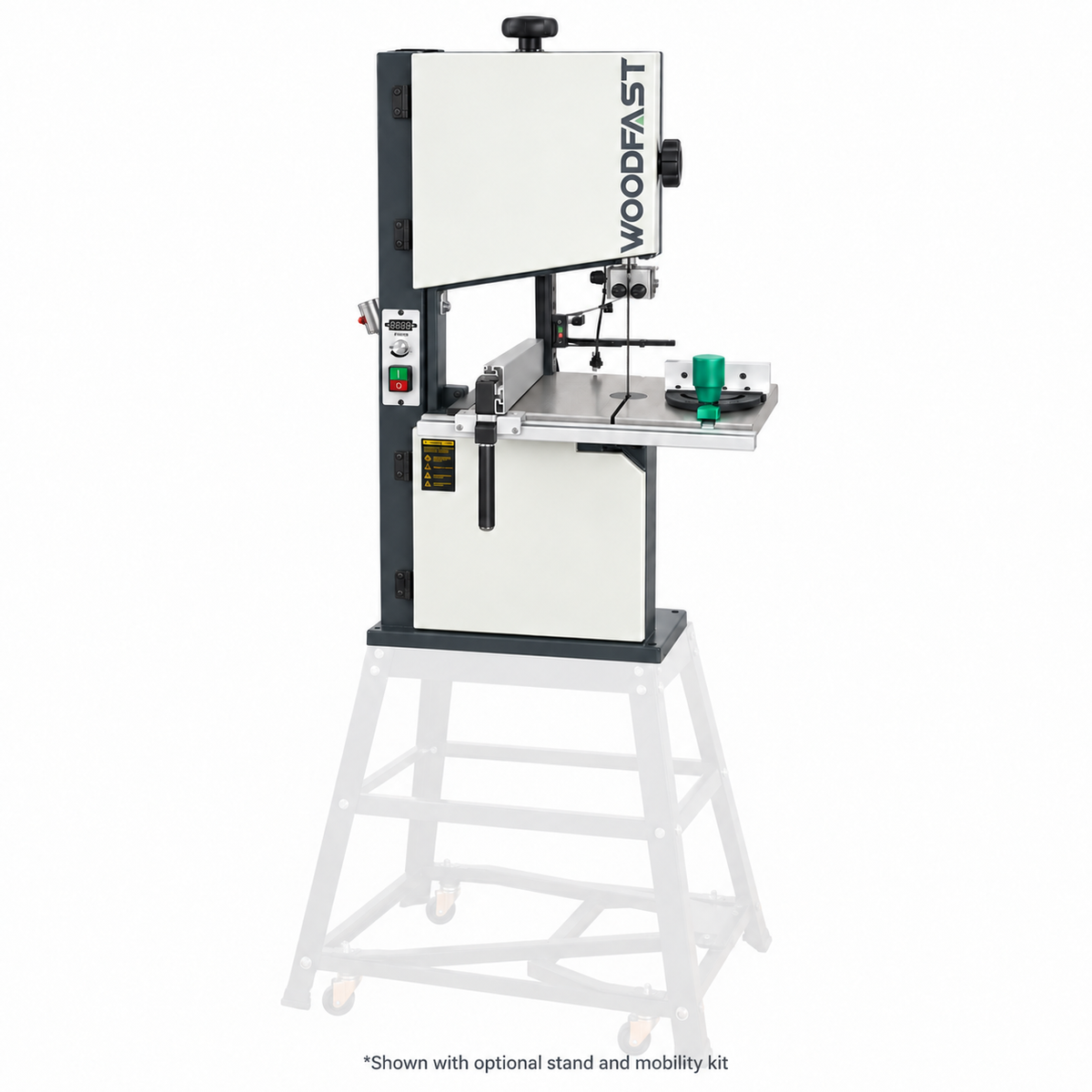

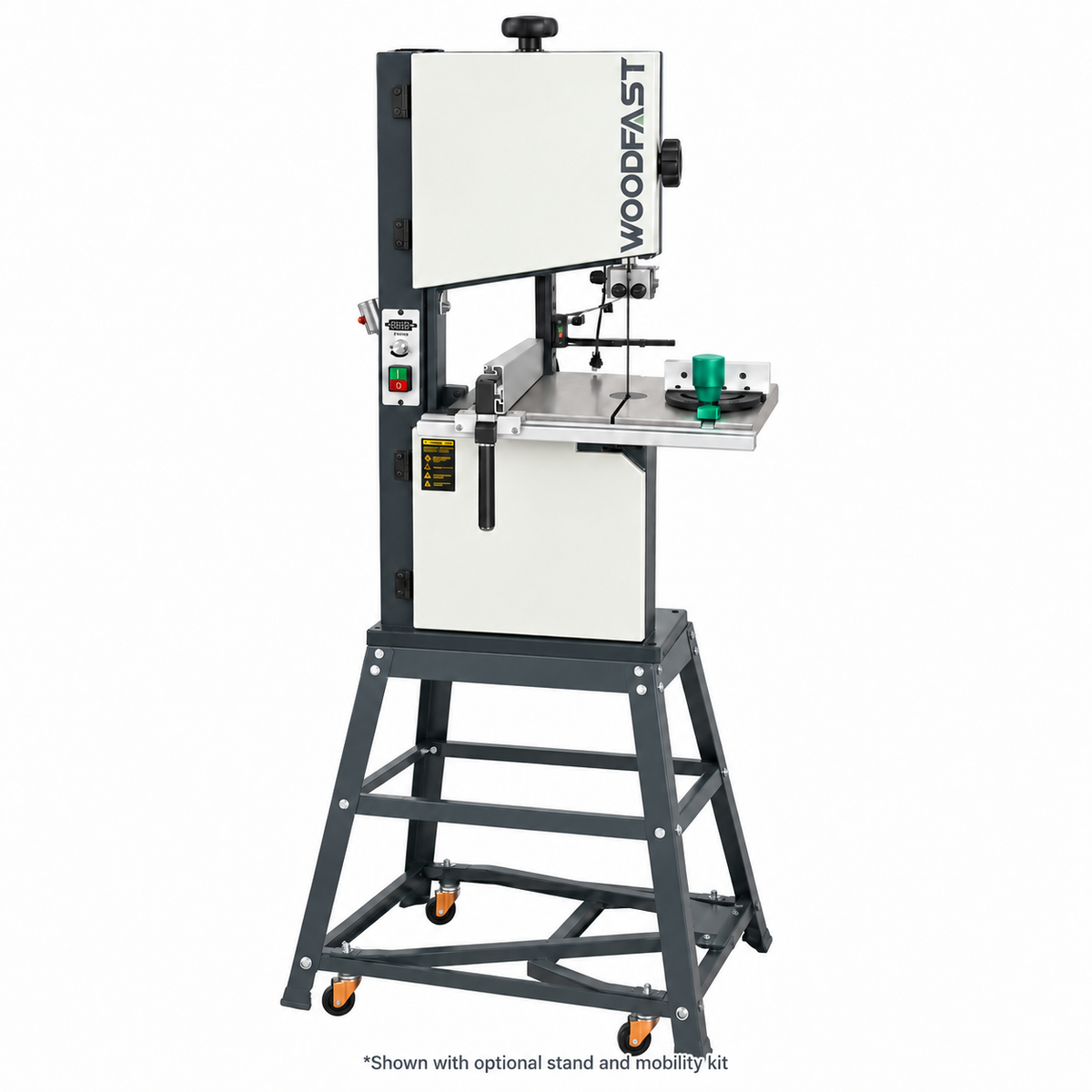

The BS250B can be used on a suitable workbench or paired with the optional Woodfast BS250-OS open stand and compatible mobility kit.
Key Features
- Spring-Loaded Tool-Less Blade Guide System - Can Be Adjusted Quickly And Easily Without Tools

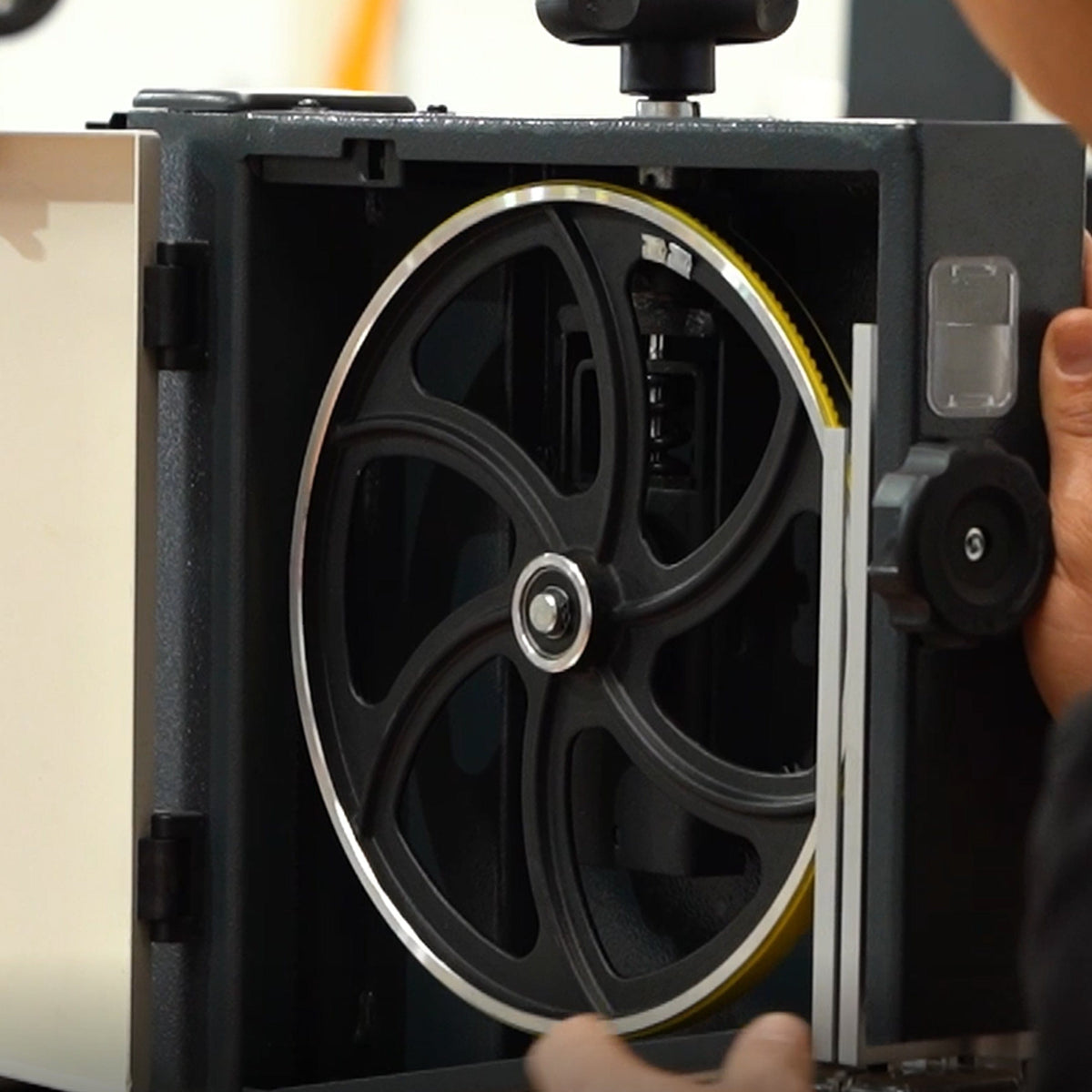

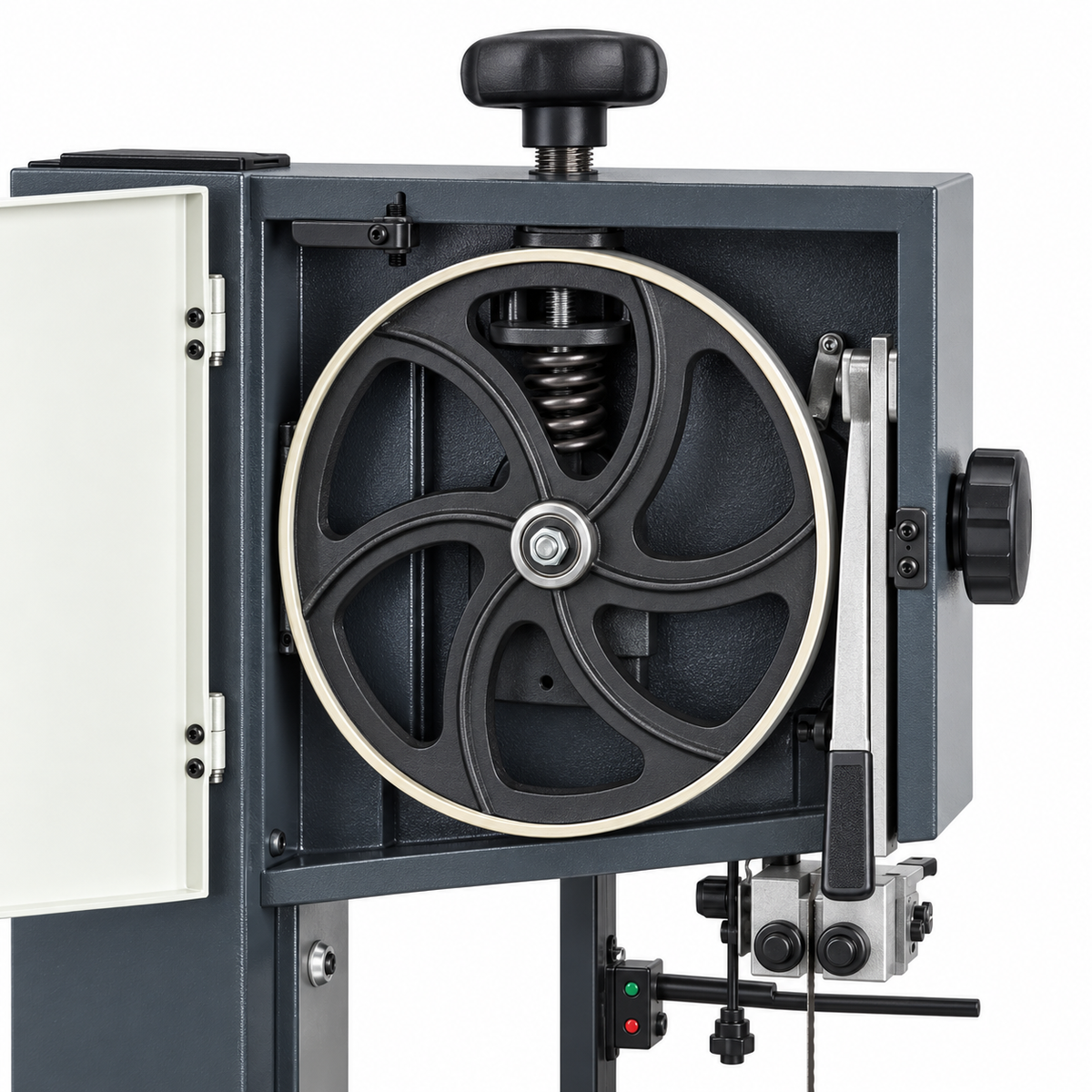

- Cast Aluminium Balanced Bandwheels - with Easy to fit and hard wearing Urethane Bandsaw Tyres

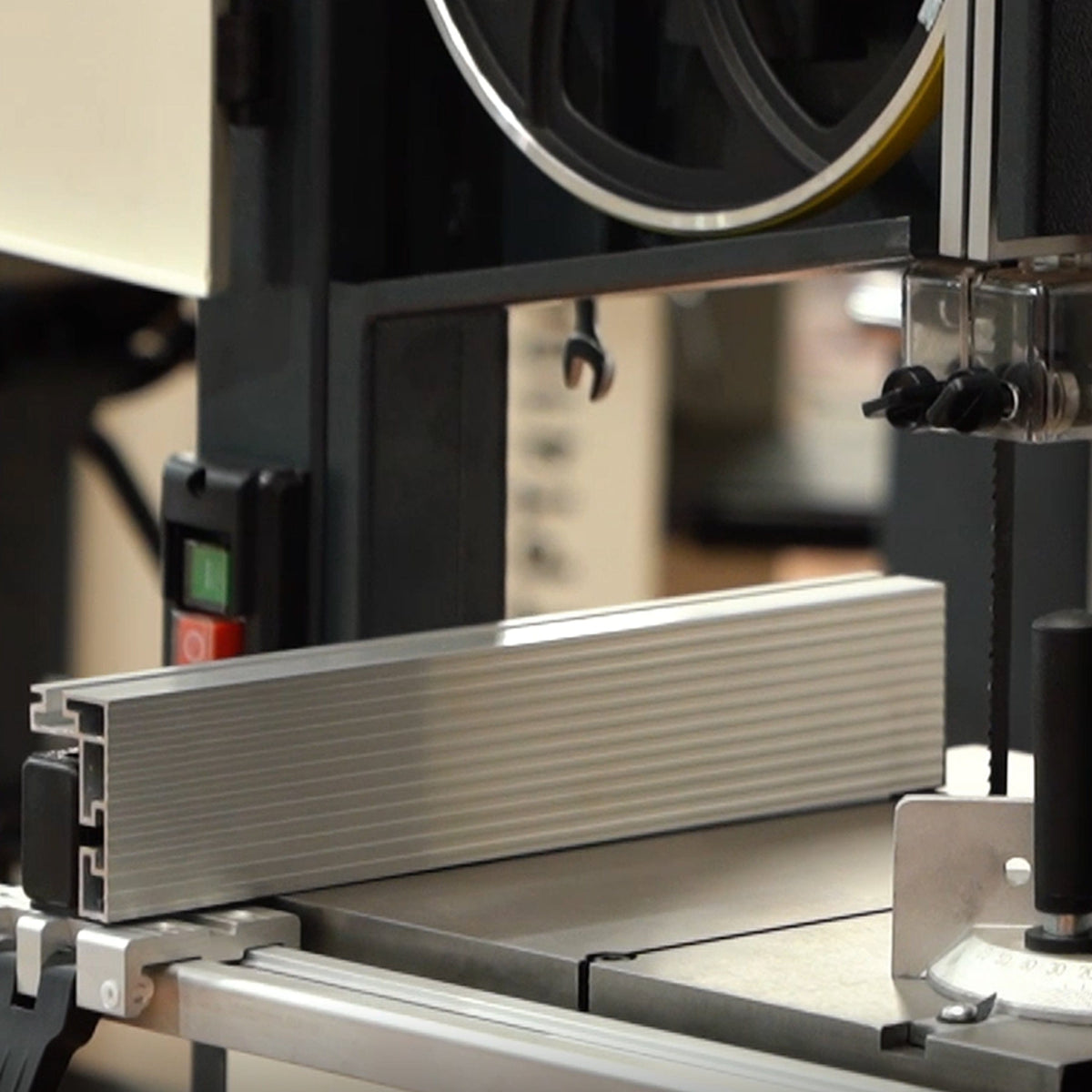

- Adjustable Aluminium Rip Fence Helps Guide The Work Piece For Straight And Accurate Rip Cutting with Cam Lock For Easy And Quick Moveability

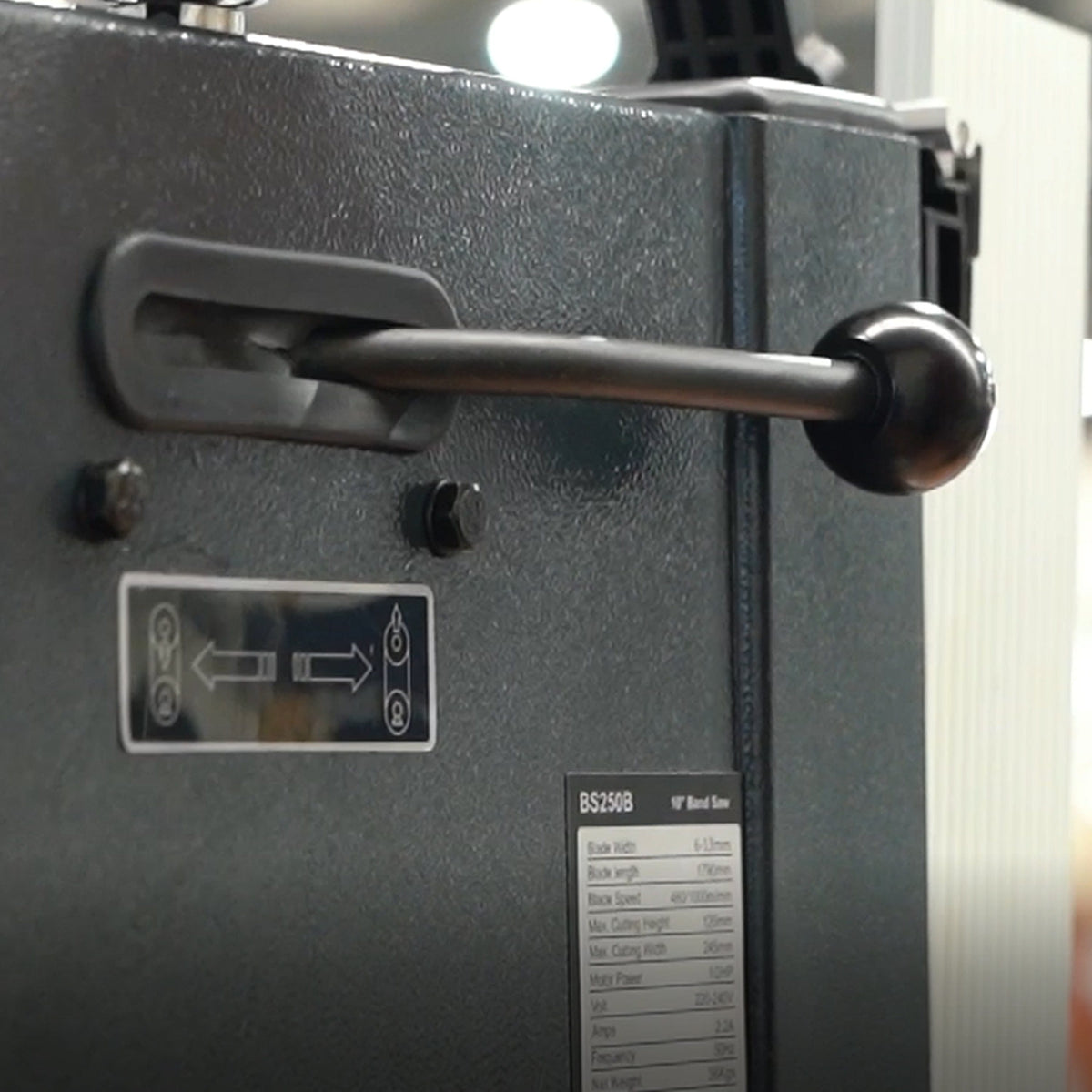

- Quick Tensioning Device - Quick Release The Blade Tension After Working And Increase The Blade Life

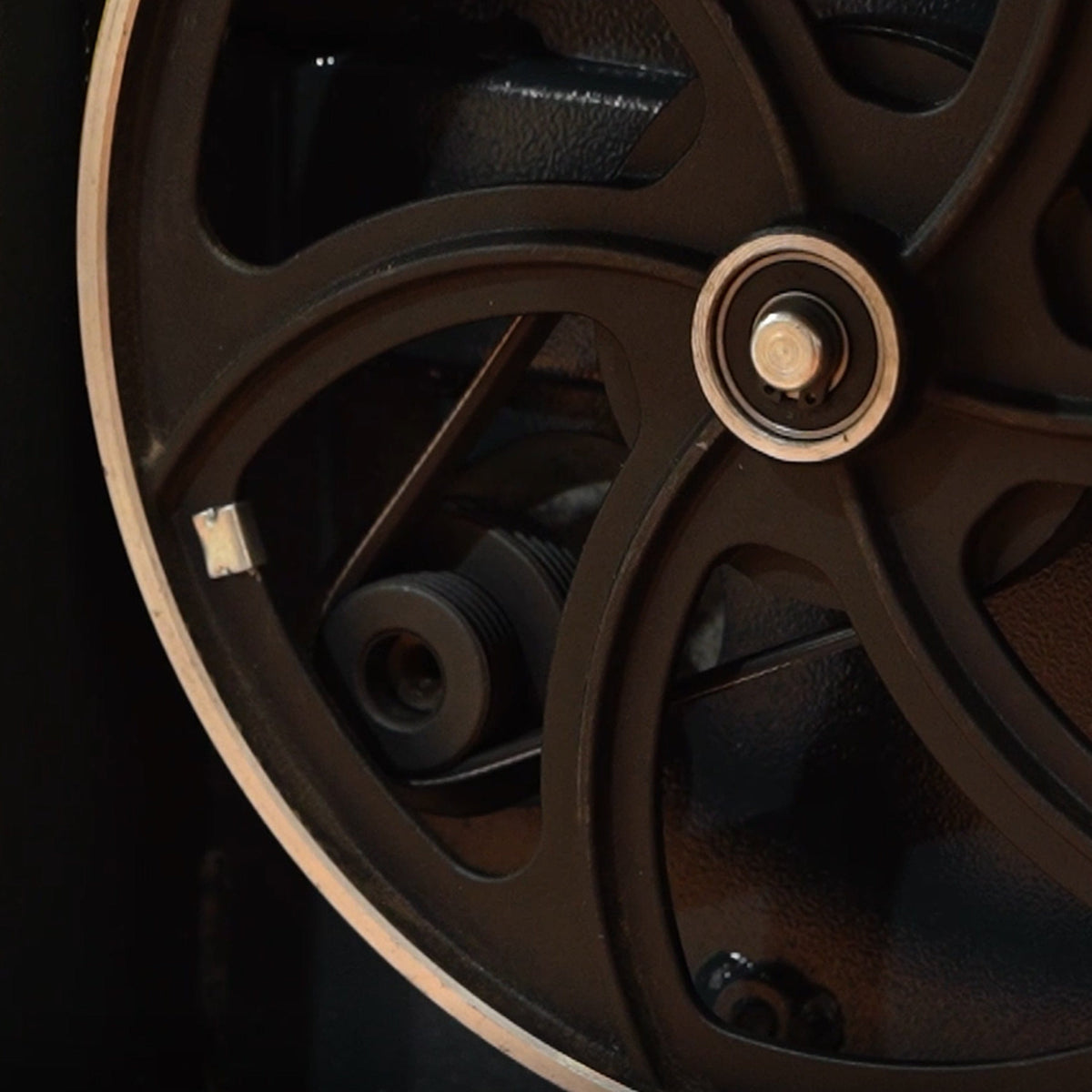

- Two Speed: Run The Blade at Either 460m/Min. Or 1000m/Min. To Meet The Needs Of Any Given Project. The Two Speeds Allows for Cutting of Light Metals.

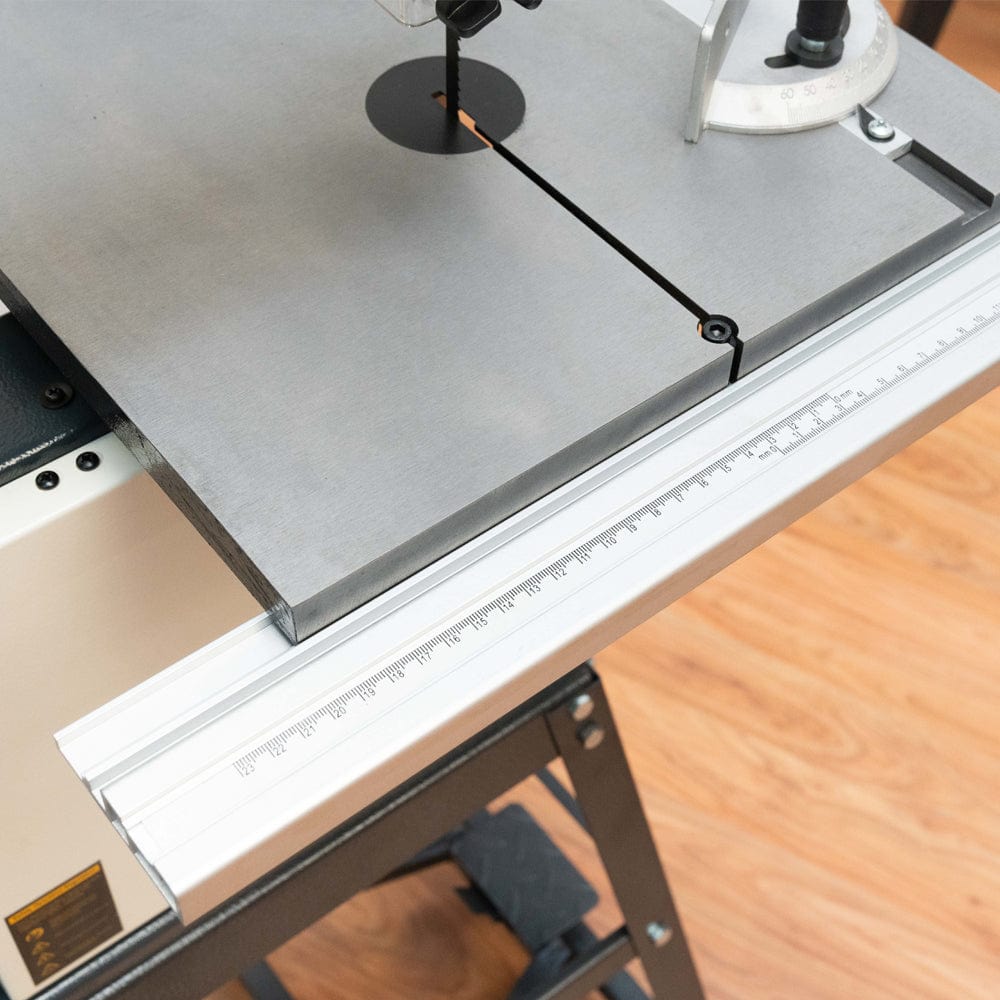

- Tape Measure along Table

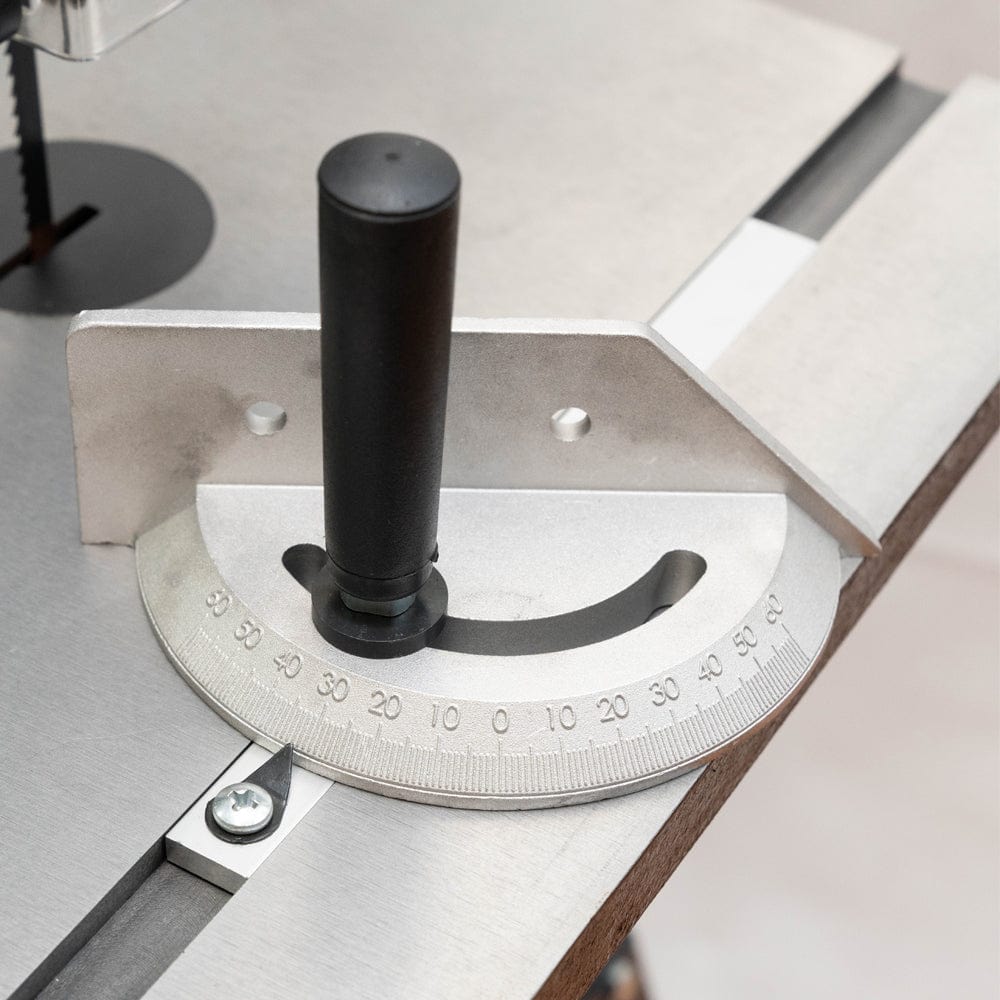

- Mitre Gauge - with T Slot

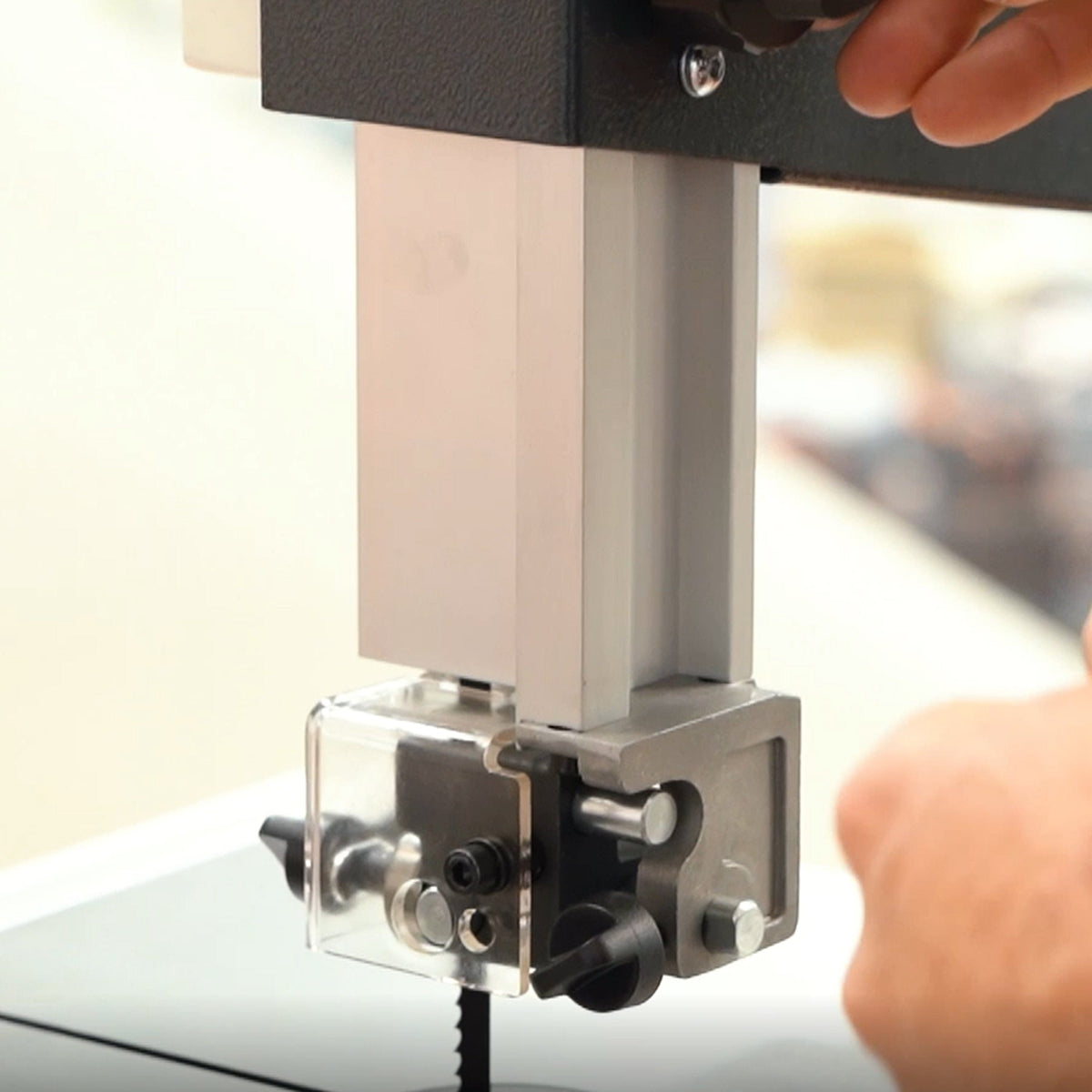

- Rack and Pinion Gear for Height Adjustment
- Floor to Table Height: 1010mm (With Optional Stand - Sold Separately)
Additional Safety Features

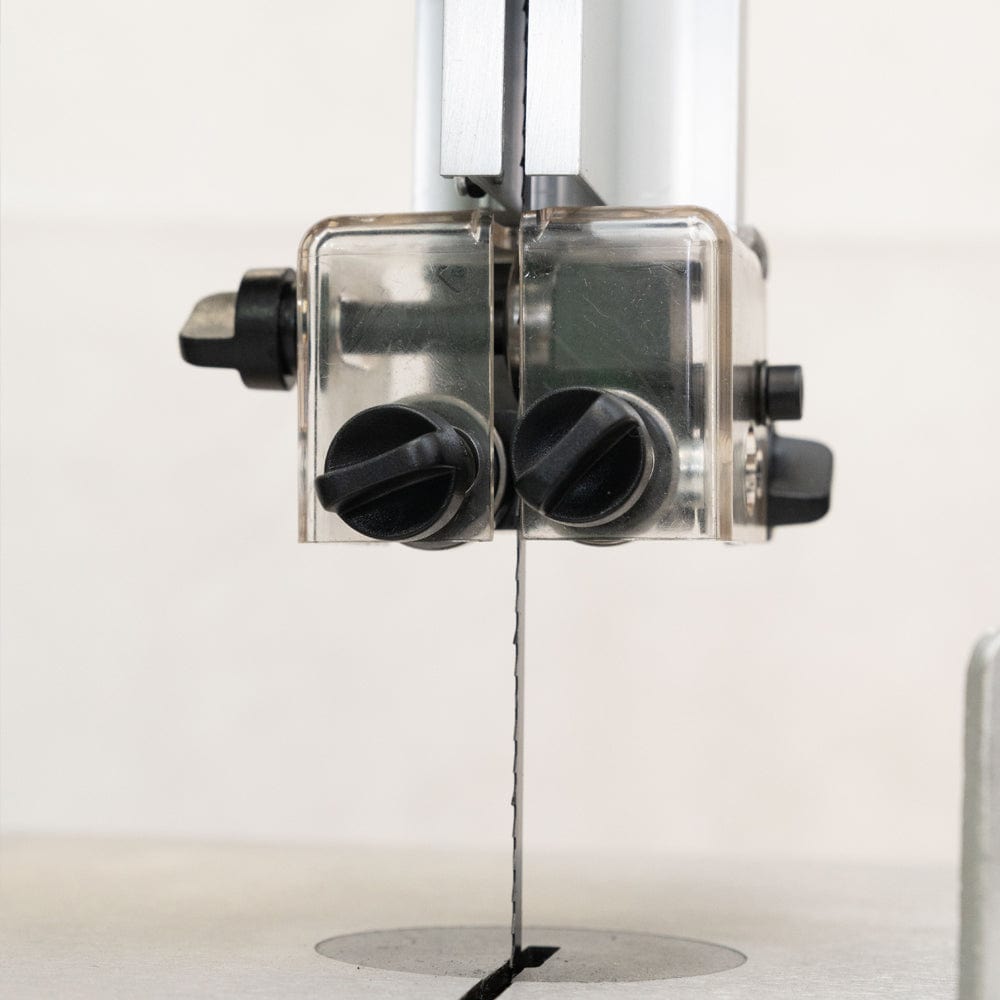

- Clear Plastic Blade Tool-Less Blade Guide System Cover
- Micro Switch on Each Door - The machine won't operate with the door open

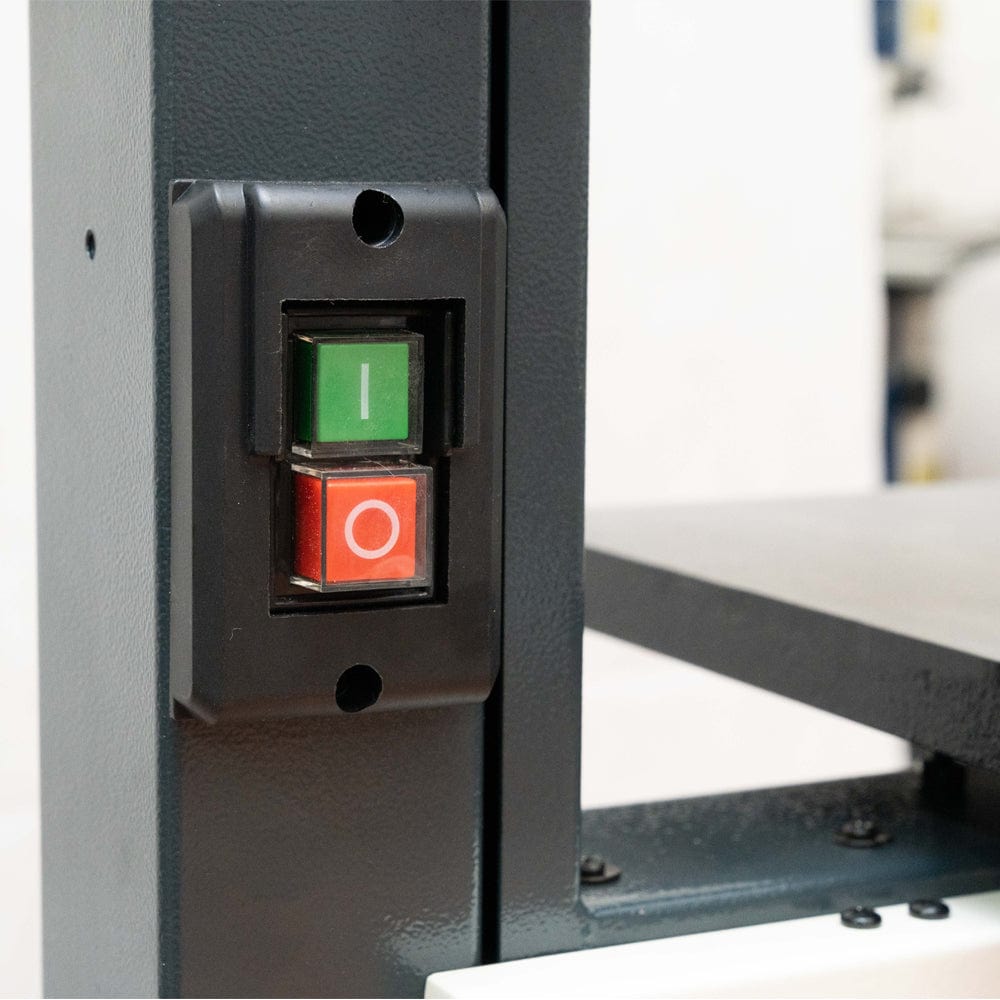

- No Volt Relay Switch - If power is disconnected and then reconnected the machine wont automatically restart.
Features at a Glance
- Compact 250mm (10") benchtop bandsaw
- 370W output induction motor
- Two selectable blade speeds: 460m/min and 1,000m/min
- 245mm throat capacity
- Maximum cutting height of 120mm
- Strong steel-frame construction
- Cast-iron worktable for improved stability

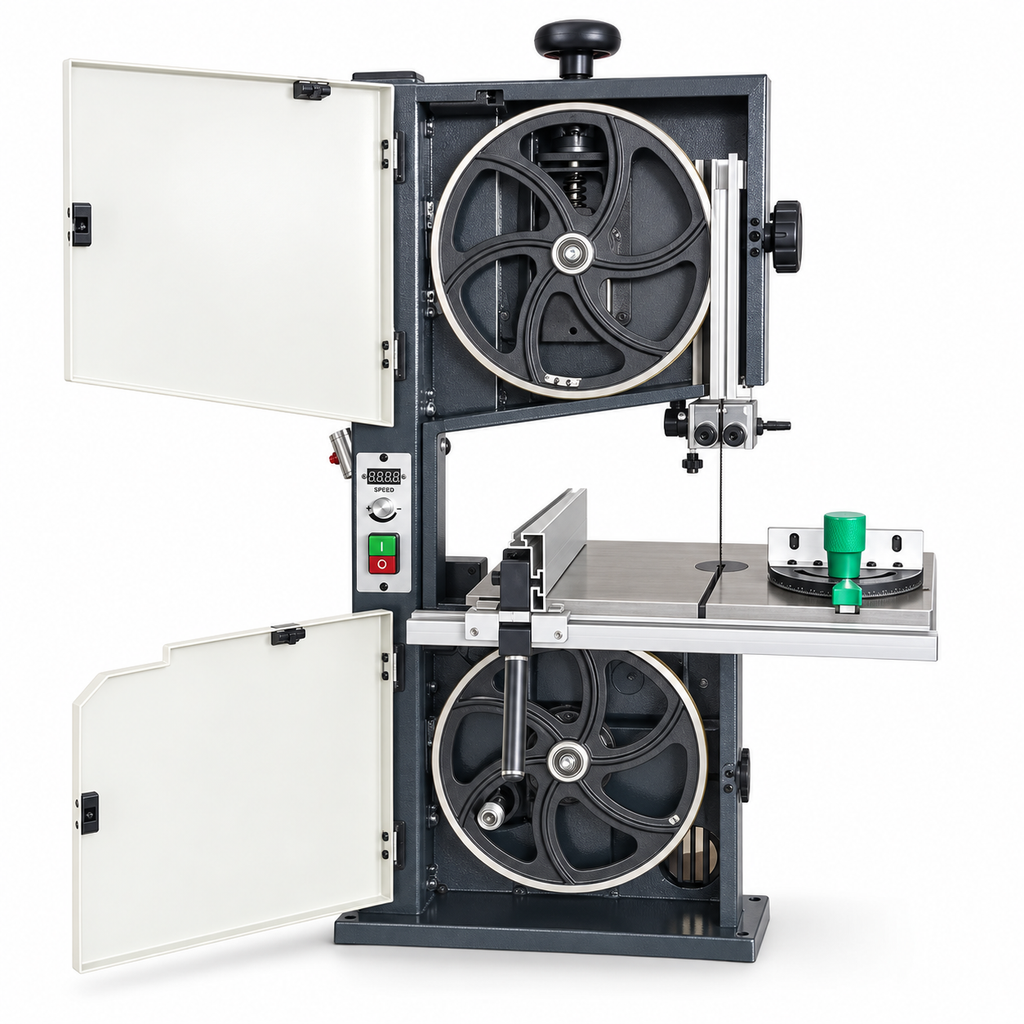

- Balanced 254mm cast-aluminium bandwheels
- Durable, replaceable urethane bandsaw tyres
- Spring-loaded, tool-less blade guides
- Quick-release blade-tension lever
- Rack-and-pinion upper blade-guide adjustment
- Adjustable aluminium rip fence with cam lock
- Integrated measuring scale along the table

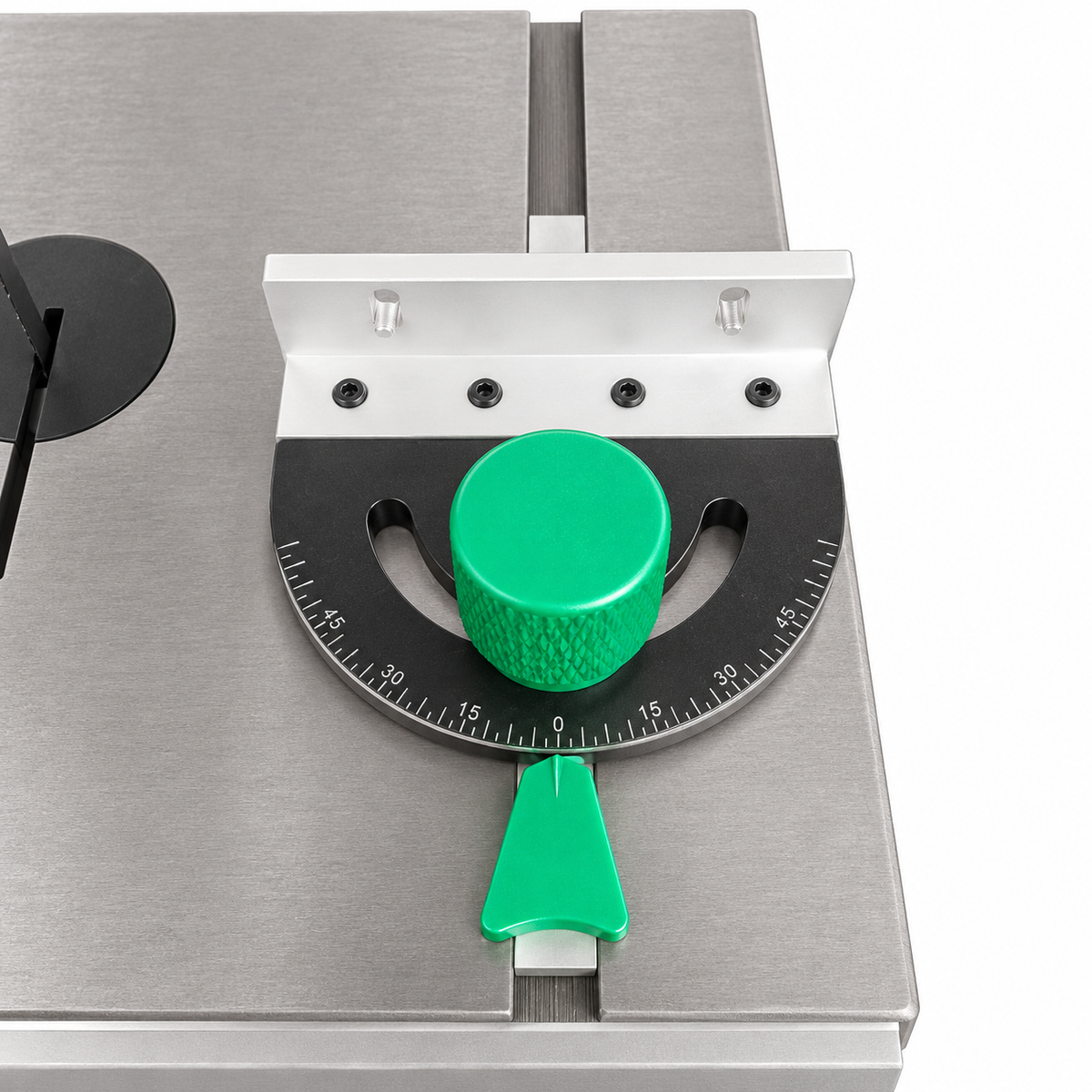

- Mitre gauge and T-slot

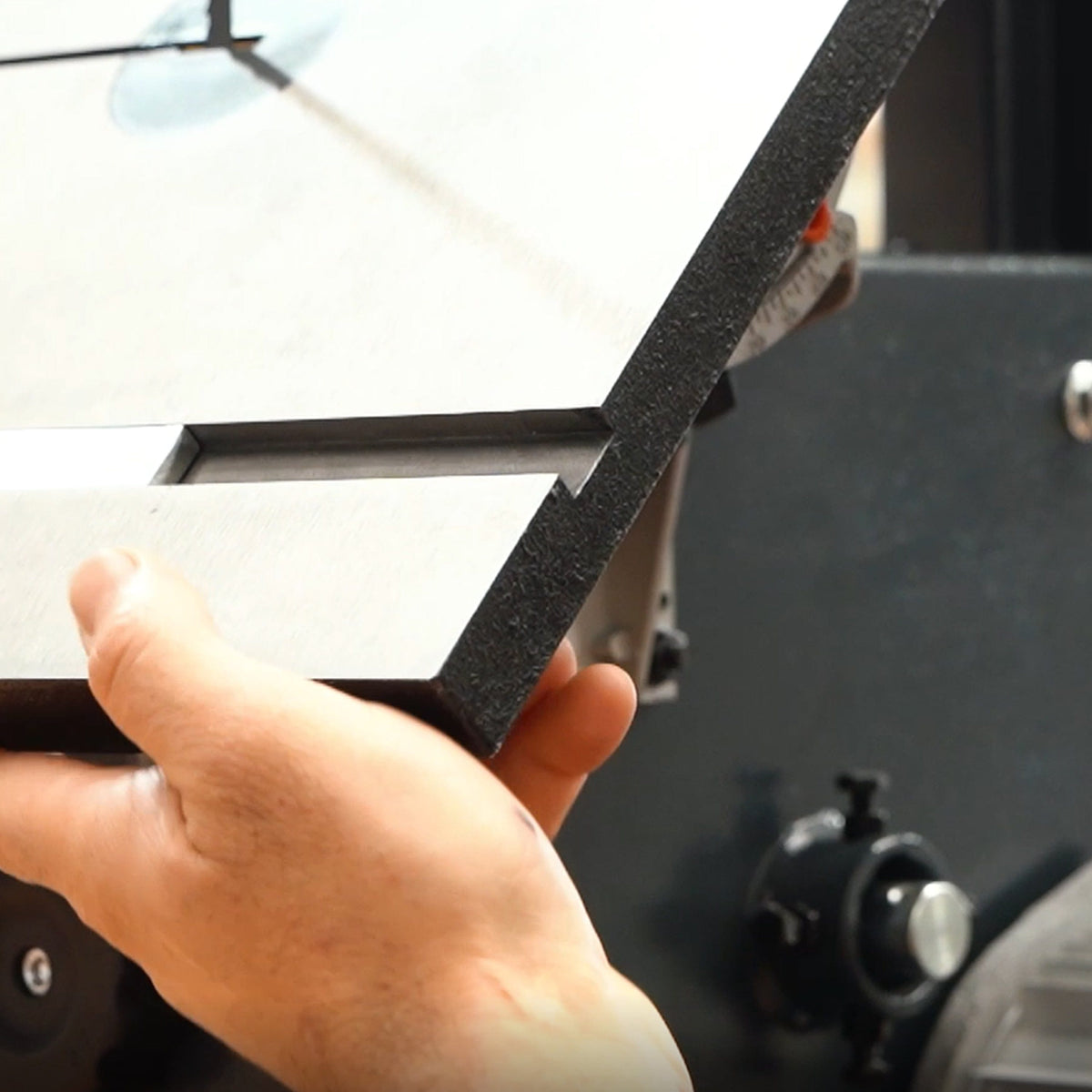

- Tilting table for bevel cutting
- 63.5mm (2-1/2") dust-extraction outlet
- Safety microswitch fitted to each wheel door
- No-volt-release switch helps prevent unintended restarting
- Optional stand and mobility accessories available separately
Applications
Suitable for:
- Straight and curved timber cutting
- Small furniture and cabinetry projects
- Craft and hobby woodworking
- Toy making
- Template and pattern cutting
- Workshop and school woodworking
- Cutting suitable non-ferrous or light metals with the correct blade and speed selection
Always install a blade suited to the material being cut and follow the manufacturer’s operating instructions.
Specifications
| Specification | BS250B |
|---|---|
| Bandsaw size | 250mm (10") |
| Motor output | 370W / 0.5HP |
| Motor input | 550W / 0.75HP |
| Power supply | 230–240V, 50Hz, single phase |
| Electrical connection | 10A lead and Australian plug |
| Bandwheel diameter | 254mm |
| Bandwheel construction | Cast aluminium |
| Blade length | 1,790mm |
| Recommended blade width | 6–13mm |
| Blade speed | 460 or 1,000m/min |
| Maximum cutting height | 120mm |
| Throat capacity | 245mm |
| Table size | 350 × 318mm |
| Table tilt | 0–45° |
| Dust outlet | 63.5mm (2-1/2") |
| Net weight | 36kg |
| Packaged weight | 39kg |
| Packaged dimensions | 910 × 330 × 460mm |
| Floor-to-table height | Approximately 1,010mm with optional stand |
| Installation | Benchtop or optional stand |
| Warranty | 3 years home use / 1 year commercial use |
Additional Information
Model
Type
Bandsaw
SKU
8000834
Series
Benchtop
Part Number
BS250B
Barcode
735745531150
Brand
Woodfast
Size
250mm (10")
Technical - Main
Blade Width
6-13mm
Blade Length
1790mm
Bandwheel Diameter
254mm
Bandwheel
Cast Aluminium
Motor Power (Output)
Motor Power (Output)
Output power means the maximum power that the motor puts out under ideal conditions.
370W (0.5HP) (0.37kW)
Motor Power (Input)
Motor Power (Input)
Input power means the full-load power input required to operate the motor.
0.75HP (0.55kW / 550W)
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
230-240V 50Hz (Single Phase)
Throat Capacity
245mm
Table Size
350 x 318mm
Speed Range
1000m/min, 460m/min
Electrical Connection
Electrical Connection
Please note by default all our products are rated 230V-240V or 415V to suit the Australian Market
10Amp Lead & Plug
Cutting Capacity - Height
120mm
Dimensions
Product Length
650mm
Product Width
500mm
Product Height
1450mm
Product Weight (Net Weight)
36kg
Country of Origin
Manufactured in
China
Designed, Researched & Developed in
Australia
Features
Rack & Pinion
Rack & Pinion
A rack and pinion is a type of linear actuator that comprises a circular gear (the pinion) engaging a linear gear (the rack).
Tool Less Blade Guide System
Tool Less Blade Guide System
Tool Less Blade Guide System features quick adjusting, spring loaded, ball bearing blade guides for fast and easy setting to the blades.
Blade Tensioning Quick Release Device
Blade Tensioning Quick Release Device
Lever to ensure quick release of blade tensioning when not in use to help prevent blade stretching and deforming the band saw tyres, which are likely made of rubber or urethane. A stretched blade will cause the operator to increase blade tension to compensate, increasing blade break risk. De-tensioning your blade will extend the life of your blade.
Induction Motor
Induction Motor
This motor operates using electromagnetic induction, which allows it to generate consistent torque and speed without the need for brushes or commutators, resulting in lower maintenance and increased durability. With its robust design, the induction motor delivers reliable power, ensuring smooth operation even under heavy loads.
Table Fence Construction
30 x 60mm Aluminium Rip Fence
Mitre Gauge Included
Tilting Table
Tilting Table
A tilting table in a machine is a mechanical component designed to adjust the angle or orientation of a work surface or workpiece relative to the machine's axis of operation. This adjustable feature enables operators to position the workpiece at different angles, facilitating various machining processes such as drilling, milling, or grinding. Tilting tables are commonly found in machining centers, allowing for greater flexibility in manufacturing operations by accommodating different machining requirements and achieving precise workpiece positioning for optimal results.
Standard Inclusions

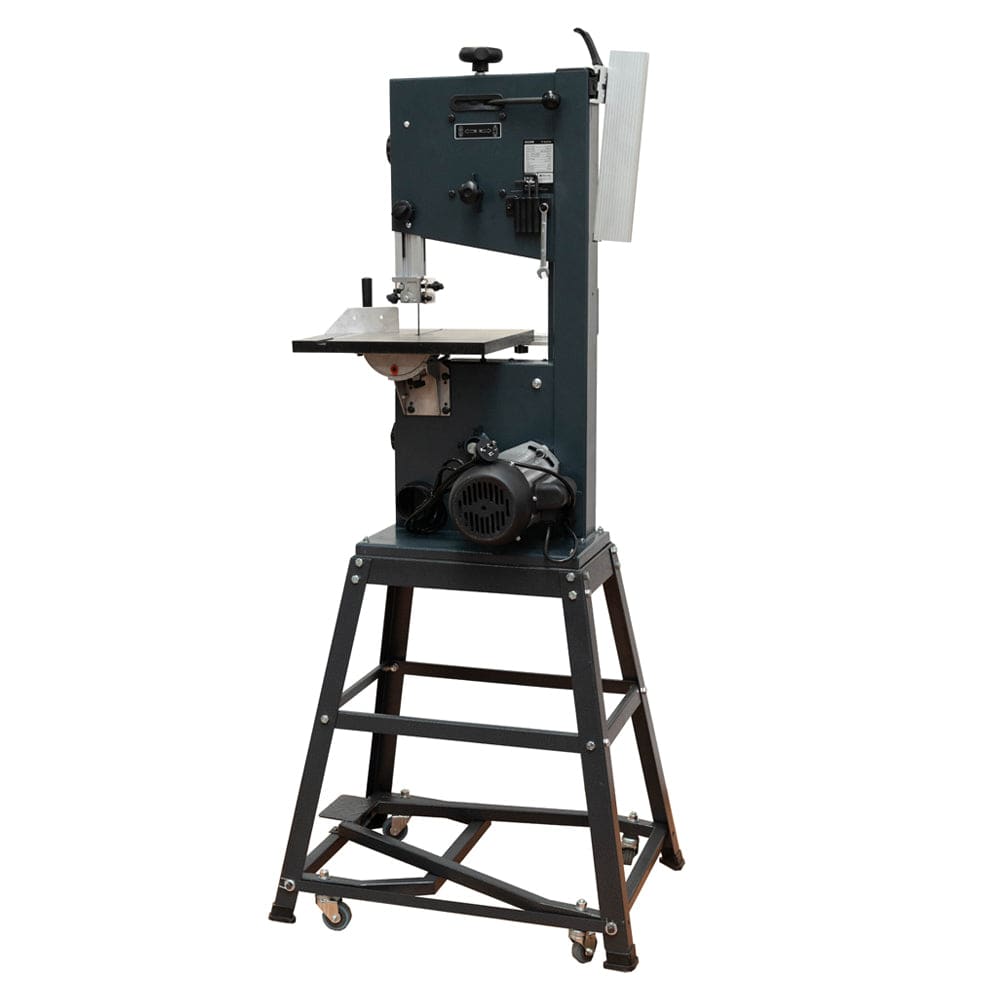

Tool Kit (Fixed to Rear) with Allen Keys and Spanner
Price Vs Quality
Quality
Commercial (Suitable for Professional / Trade Use)
Workshop (Site) Info
Dust Hose Inlet Diameter
63.5mm (2-1/2")
Workshop Requirements
Benchtop or Stand (available separately)
Warranty
Warranty (Australia)
Warranty (Australia)
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
3 Years (Home User) or 1 Year (Commercial User)
Warranty (Important for International Customers)
Warranty (Important for International Customers)
Important Warranty Notice for International CustomersPlease note that purchases made from outside Australia are undertaken at the customer’s own risk. Our product warranties are generally valid within Australia only. While we are happy to assist with warranty-related issues, the following conditions apply for international orders:Any warranty claim requires the item to be returned to us in Australia at the customer’s expense.If the claim is accepted, Beyond Tools will carry out the repair or replacement under the terms of the Australian warranty.Return shipping of the repaired or replacement item must also be paid by the customer.We do not cover international freight, import duties, or customs clearance costs.We strongly recommend that international customers consider this before purchasing. If you have any questions, please feel free to contact us before placing your order.
See Notes
Packaging + Shipping
Shipping Length
910mm
Shipping Width
330mm
Shipping Height
460mm
Shipping Weight (Gross)
39kg
Packaging
Packaging
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Cardboard Box
Shipping Notes
Shipping Notes
It is highly recommended that goods over 25Kg are handled with a forklift / tail lift. For items over 32kgs, you must ensure there is assistance for loading and unloading unless you have selected the Tail lift options, otherwise there will be additional fees.This is for safe handling for the product and the handler.Please ADD a Tail Lift to your order - should you wish to include a Tail Lift.Goods over 50Kg must be handled by a Forklift / Tail Lift.
This product is classified as 'Heavy / Oversized' and generally does not qualify for FREE SHIPPING.
Product Specification Disclaimer
Product Specification Disclaimer
Product Specification Disclaimer
The specifications provided on our product pages are obtained from various manufacturers and third-party sources. While we strive to ensure that the information is accurate, we do not warrant or guarantee its accuracy, completeness, or timeliness. Therefore, we cannot be held liable for any errors, omissions, or discrepancies in the specifications provided.Please note that product specifications are subject to change by the manufacturers without notice. It is recommended to verify the specifications with the manufacturer or seller before making a purchase decision.In the event of any discrepancy between the product specifications on our website and the actual product, the latter shall prevail.We reserve the right to update, modify, or remove product specifications at any time without prior notice.
See Notes
Comparable Products Disclaimer
Comparable Products Disclaimer
Our product comparisons are based on our first-hand experiences and knowledge of models we've sold in the past. We aim to provide objective and accurate information to assist you in making informed decisions. We do not receive compensation for featuring products in our comparisons. For more details on our disclosure practices, please click here to view the full disclosure statement.
See Notes
Electrical Specifications (Important for International Customers)
Electrical Specifications (Important for International Customers)
Electrical Specifications (Important for International Customers)
Electrical Specifications (Important for International Customers)All power tools and machines sold by Beyond Tools are designed to operate on 230V / 50Hz electrical systems as standard in Australia.These products are supplied with Type I Australian power plugs.If you are purchasing from outside Australia, particularly from regions using 110V–120V systems (e.g., USA, Canada), you will require a step-up transformer or region-appropriate model.Please consult a qualified electrician before using voltage converters to ensure safe and correct operation.Disclaimer: Beyond Tools is not responsible for any damage, malfunction, or safety risks resulting from the use of products outside their intended voltage range or with incompatible electrical systems.
See Notes
Product Accessories
Product Accessories

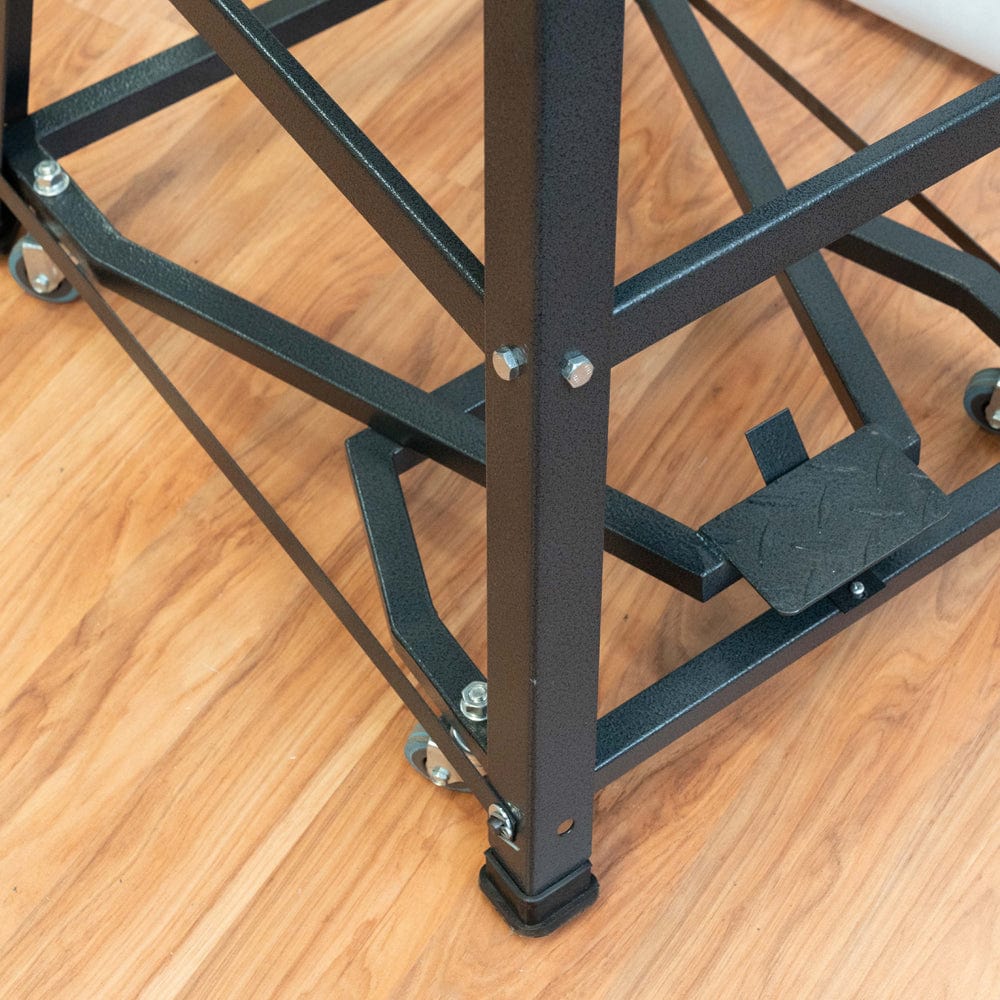

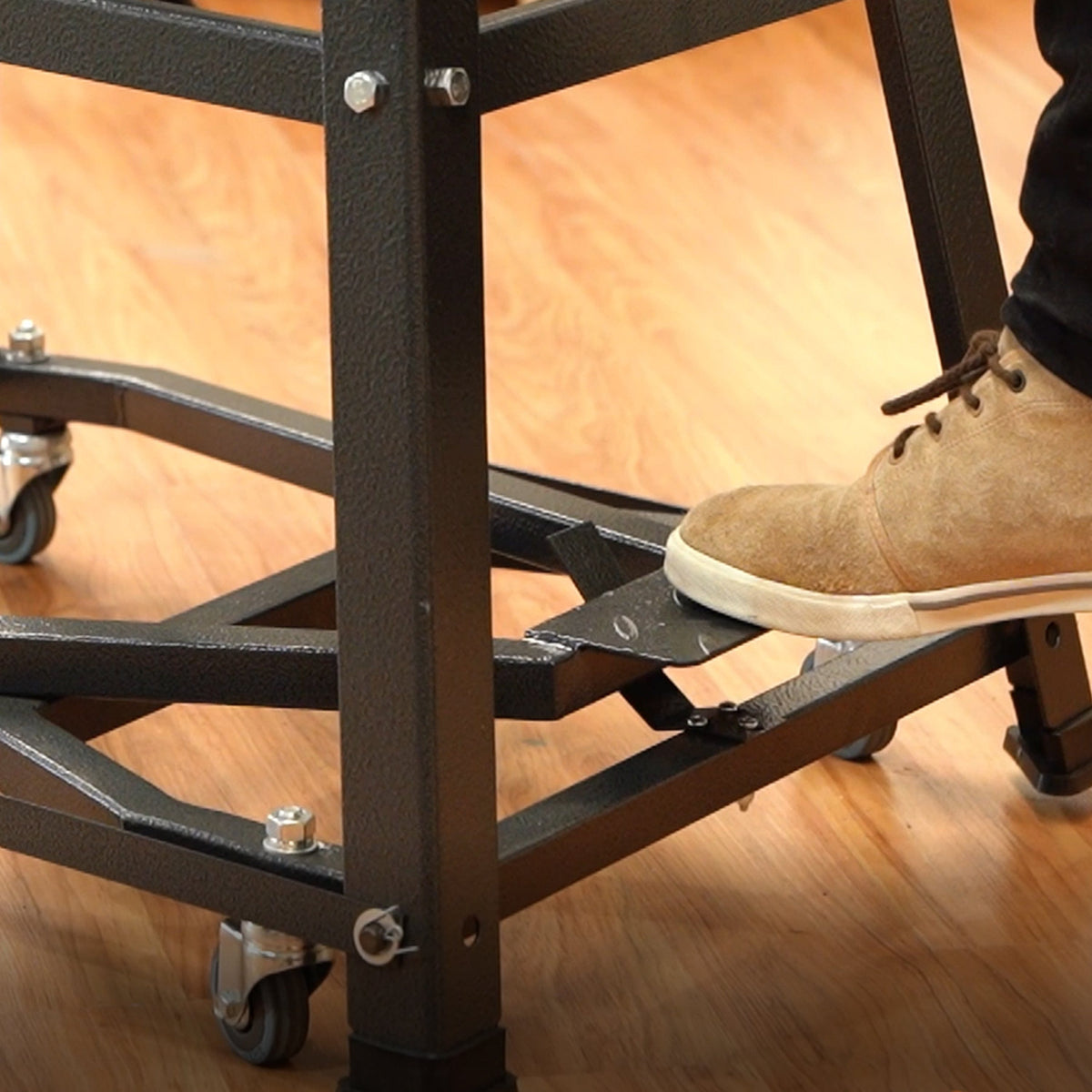

- Woodfast Mobility Wheel Kit BS250B-MWK suit BS250B Bandsaw
- Woodfast Universal Open Stand BS250-OS - Suits BS250B Bandsaw or Similar
- Woodfast Universal Sacrificial Plastic Bandsaw Table Inserts 60mm (4Pce) suit Bandsaws
- Plastic Table Inserts suit Bandsaws C10-393
- 4Pce Zero Clearance Table Inserts suit Bandsaws C10-394
