600mm (24") Professional (Industrial) Bandsaw 5.5HP 415V BS600A by Woodfast

WoodfastSKU: 8601500

Price:
Sale price$4,799.00 AUD
Dealers

Status

Available

Description

Features

  • Dual 200mm (4″) Dust Ports
  • Double Bearing Blade Guide System
  • Thickened Large Cast Iron Table with T Slot Design
  • Fully Enclosed thickened Steel Body
  • Quick Release Blade Tension
  • Hinged Blade Guard with Sight Window
  • Rack and Pinion Saw Blade Guide
  • Mechanical Motor Brake

Client Case Study

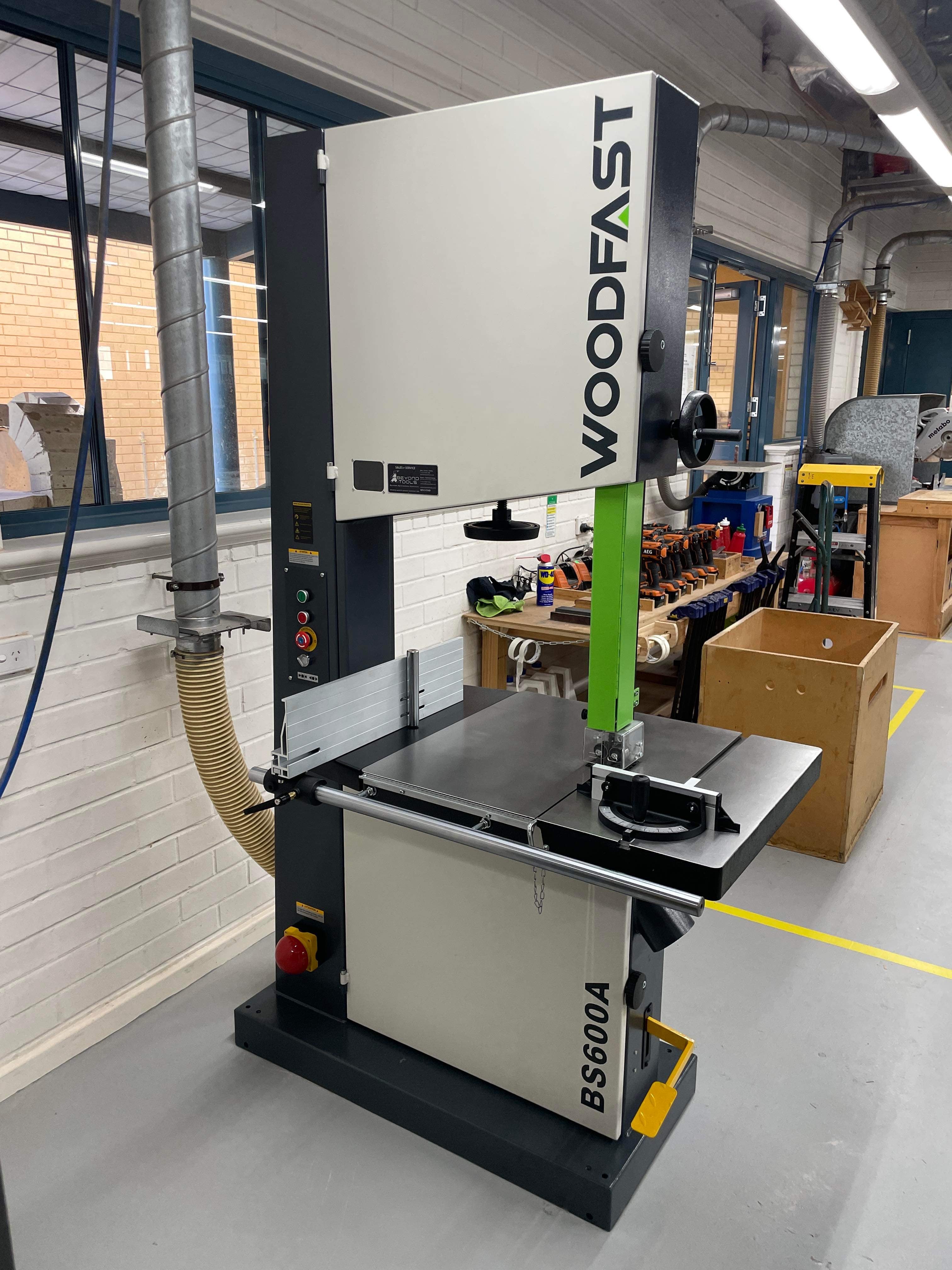

  • Woodfast BS600A installed at Carey Baptist College, Western Australia (2023)


Additional Information

Model
Type
Bandsaw
SKU
8601500
Part Number
BS600A
Brand
Woodfast
Size
600mm (24")
Configuration
Configuration
The term "configuration" refers to the design or setup of a machine, specifically whether it is benchtop, pedestal, or portable style.

Benchtop Configuration: Machines with a benchtop configuration are designed to be placed on a workbench or tabletop. These machines are typically compact and ideal for smaller workspaces or projects.

Pedestal Configuration: Machines with a pedestal configuration are mounted on a sturdy pedestal or stand. This configuration provides stability and may offer additional height and accessibility for certain applications.

Portable Configuration: Machines with a portable configuration are designed to be easily transported and used in various locations. These machines are lightweight and often feature handles or carrying cases for convenient portability.

Understanding the configuration of a machine is important as it determines how it will fit into your workspace and how you will interact with it during operation.
Floor Standing
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
415V 50Hz Three Phase
Motor Power (Output)
Motor Power (Output)
Output power means the maximum power that the motor puts out under ideal conditions.
5.5HP
Bandwheel
Cast Iron (Balanced)
Bandwheel Diameter
600 mm
Blade Type
Continuous
Blade Length
4470 mm
Blade Width
10-35mm
Cutting Capacity - Height
370 mm
Throat Capacity
580 mm
Table Size
700mm x 608mm
Technical - Saw
Blade (Main) - Speed
1500m / Min.

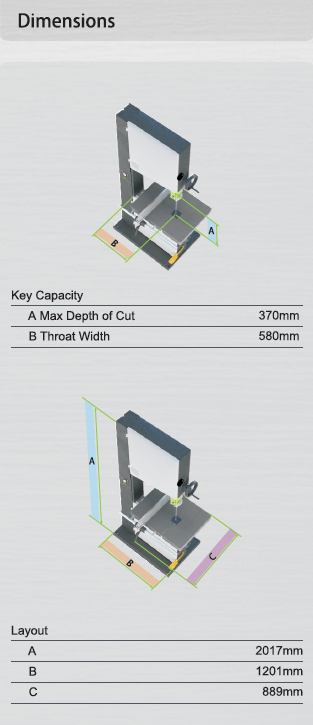

Dimensions
Product Length
1201 mm
Product Width
889 mm
Product Height
2040 mm
Product Weight (Net Weight)
330 kg
Country of Origin
Designed, Researched & Developed in
Australia
Manufactured in
China
Features
Rack & Pinion
Rack & Pinion
A rack and pinion is a type of linear actuator that comprises a circular gear (the pinion) engaging a linear gear (the rack).
Easy Speed Change Device with Speed Adjust Handle
Easy Speed Change Device with Speed Adjust Handle
Easily change the speed without stopping the machine the traditional way and moving the belt - instead simply adjsut the speed with the easy adjust handle.
Tool Less Blade Guide System
Tool Less Blade Guide System
Tool Less Blade Guide System features quick adjusting, spring loaded, ball bearing blade guides for fast and easy setting to the blades.
Blade Tensioning Quick Release Device
Blade Tensioning Quick Release Device
Lever to ensure quick release of blade tensioning when not in use to help prevent blade stretching and deforming the band saw tyres, which are likely made of rubber or urethane. A stretched blade will cause the operator to increase blade tension to compensate, increasing blade break risk.

De-tensioning your blade will extend the life of your blade.
Induction Motor
Table Fence Construction
150mm High Aluminium Rip Fence with Solid Round Bar Guide Rail and Solid Cast Locking Mechanism - Fence can be fitted to either side of the work table.
Mitre Gauge Included
Mitre Gauge Included
A mitre gauge is a device used for holding workpieces at a set angle while being cut on table saws, bandsaws or sanded on stationary disc sanders. The mitre gauge slides in a slot on the worktable (known as a mitre slot) on the machine being used.
Push Stick Included
Standard Inclusions
1 x Push Stick
1 x 4470mm Bandsaw Blade
1 x Mitre Gauge
Price Vs Quality
Quality
Commercial (Suitable for Professional / Trade Use)
Safety
Safety Switch
Safety Switch
Safety switches are low-wear and low-maintenance when it comes to safe monitoring of doors or safe position monitoring.
Magnetic safety switches on all openings
Emergency Stop Switch
Emergency Stop Switch
An emergency stop switch is a safety mechanism used to shut off machinery in an emergency, when it cannot be shut down in the usual manner.
Emergency Stop Mushroom Foot Switch
Emergency Stop Mushroom Foot Switch
An Emergency Stop Mushroom Foot Switch is a type of safety switch used in industrial and commercial settings to quickly and easily shut off power to machinery or other equipment in an emergency situation. It typically has a large, mushroom-shaped button that can be easily activated with the foot, allowing workers to stop equipment quickly without having to reach for a switch or control panel. The switch is often red and has a distinctive shape to make it easily recognizable and to promote quick action in an emergency.
Foot Operated Brake
Foot Operated Brake
The foot operated brake mechanism is a safety feature on a machine whereby a brake is supplied with the machine. The brake is operated by applying the foot pedal. When the foot pedal is
applied, the power is removed from the motor.

In the case of a bandsaw foot operated brake the flywheel is slowed by the disc break when the power is removed from the motor when the brake is applied by foot.
Blade Guard
Chuck Guard
NVR (No Volt Release) Switch
NVR (No Volt Release) Switch
A no volt release (NVR) switch is valuable safety feature for power tools and machinery. If the power is cut, the unit will default to off, so the machinery will not automatically start again when the power is restored.
Rack & Pinion Blade Guide Height Adjustment
Rack & Pinion Blade Guide Height Adjustment
Rack and pinions are a mechanical device consisting of a bar (the rack), having teeth on one side that mesh with teeth on a small gear (the pinion) and are used for lifting mechanisms (vertical movement), horizontal movement, positioning mechanisms, stoppers and to permit the synchronous rotation of several shafts in general industrial machinery.

On machine tools, rack and pinion mechanisms are used to obtain rapid movements of worktables.
Rack & Pinion Table Angle Adjustment
Rack & Pinion Table Angle Adjustment
Rack and pinions are a mechanical device consisting of a bar (the rack), having teeth on one side that mesh with teeth on a small gear (the pinion) and are used for lifting mechanisms (vertical movement), horizontal movement, positioning mechanisms, stoppers and to permit the synchronous rotation of several shafts in general industrial machinery.

On machine tools, rack and pinion mechanisms are used to obtain rapid movements of worktables.
Not Included
CE Certified
Dust Port
2 x 100mm (4")
Workshop (Site) Info
Electrical Connection
Excludes Plug & Lead (must be connected / installed by Licensed Electrician)
Other Requirements
Dust Extraction
Spare Parts / Consumables
Spare Parts / Consumables
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
3 Years (Home User) or 1 Year (Commercial User)
Packaging + Shipping
Shipping Length
1116 mm
Shipping Width
774 mm
Shipping Height
2129 mm
Shipping Weight (Gross)
337.48 kg
Packaging
Packaging
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Wooden Box / Crate with Skid
Packaging Box Qty
1
Requires a Skid to Ship
Requires a Skid to Ship
Items over 32kg must be packed on a pallet or crate so they can easily be moved by forklift.
Requires a Forklift / Tail Lift to Unload
Requires a Forklift / Tail Lift to Unload
If you are ordering an item over 32kg - it will require a forklift or loading dock at the shipping destination. If you do not have these facilities at the shipping destination you will require a tail lift delivery. Please select this optional ADD-ON. Alternatively - you can collect from the depot.
Shipping Notes
This product exceeds hand unloading limits and requires a tail lift truck or forklift at the unloading location (Receivers end). This product requires a skid / pallet / crate in order to safely transport via road.
