Type
Bandsaw
SKU
8043030
Part Number
BS350E
Barcode
735745530825
Brand
Woodfast
Size
350mm (14")
Status
Available
Description
The BS350E bandsaw features an impressive 3HP motor and the largest cutting capacity in this model range, which makes this saw ideal for use in re-sawing lumber, as well as handling normal shop work. Designed with extra user-friendly and safety features – Patent Pending tool-less blade guide system, quick-adjust fence system and quick-lock trunnion system for fast table angle setting, plus, a keyed power switch (great for unauthorized use & security), door activated emergency stop micro switch, conveniently located blade tension release lever with the tensioning wheel under the top frame, large work table with two mitre gauge ‘T’ slots, hinged blade guard, and clear sight windows for easier viewing when adjusting the blades. Includes 150mm (6”) rip fence with re-saw bar.
Features
- Cast Iron Wheels – Factory Balanced
- Emergency Stop Micro Switches – Fitted to Door + Blade
- Spring Loaded Tool-less Lower Blade Guides – Easily Accessible, Easy & Fast setting of the guides without wrenches!
- Extra Tall Rip Fence – With Resaw Bar, Increased fence and re-saw bar heights of 150mm (6”) give added support of lumber being ripped or re-sawn
- Quick-Adjust Rip Fence Mount – Hi-Lo Solid Cast, adjusts for drift with the simple turning of a few knobs! No tools needed
- Quick-Lock Trunnion System – Hi-Lo Solid Cast, handy lever and gear unlock, and set table angles in seconds!
- Rack Adjustment – Heavy Duty for Table Angle
- Foot Brake + Motor Brake
Additional Information
Model
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
230-240V 50Hz (Single Phase)
Motor Power (Output)
Motor Power (Output)
Output power means the maximum power that the motor puts out under ideal conditions.
3HP (2.2kW)

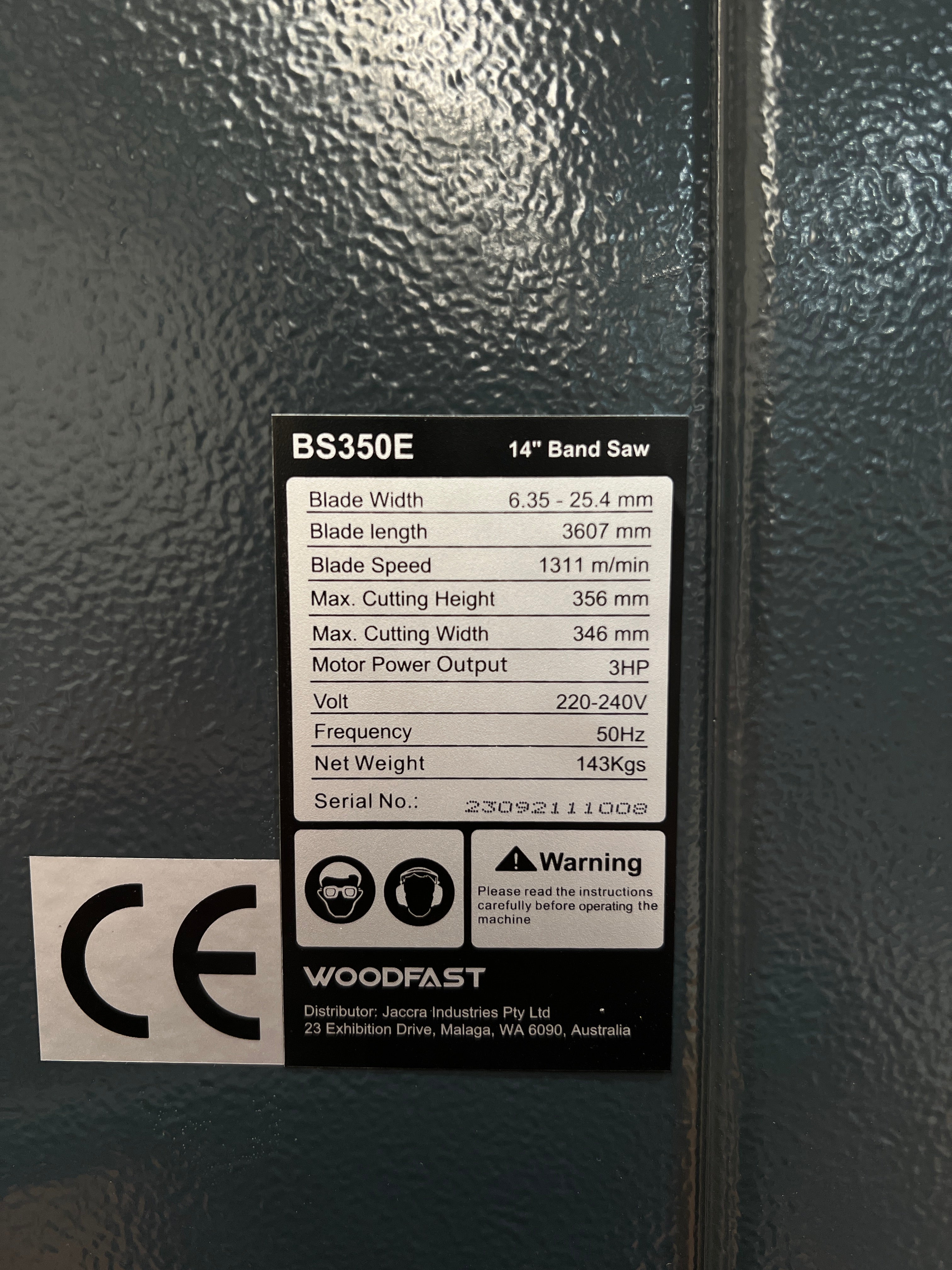

Bandwheel Diameter
350 mm
Blade Length
3607 mm
Blade Width
6.35-25.4mm
Cutting Capacity - Height
356 mm
Throat Capacity
346 mm
Table Size
546mm x 400mm
Speed Range
1311m/min.
Country of Origin
Designed, Researched & Developed in
Australia
Manufactured in
China
Features
Rack & Pinion
Rack & Pinion
A rack and pinion is a type of linear actuator that comprises a circular gear (the pinion) engaging a linear gear (the rack).

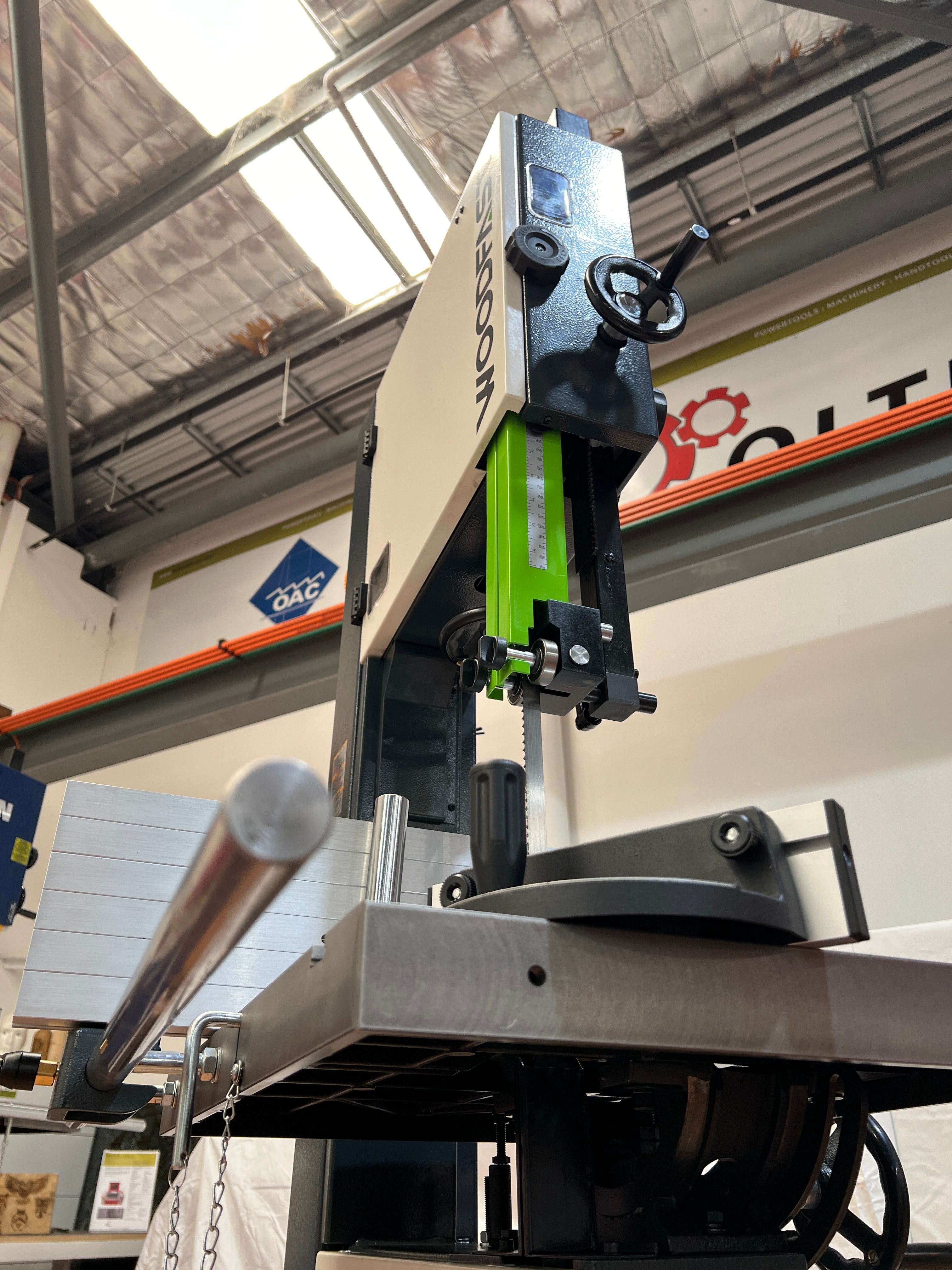

Tool Less Blade Guide System
Tool Less Blade Guide System
Tool Less Blade Guide System features quick adjusting, spring loaded, ball bearing blade guides for fast and easy setting to the blades.

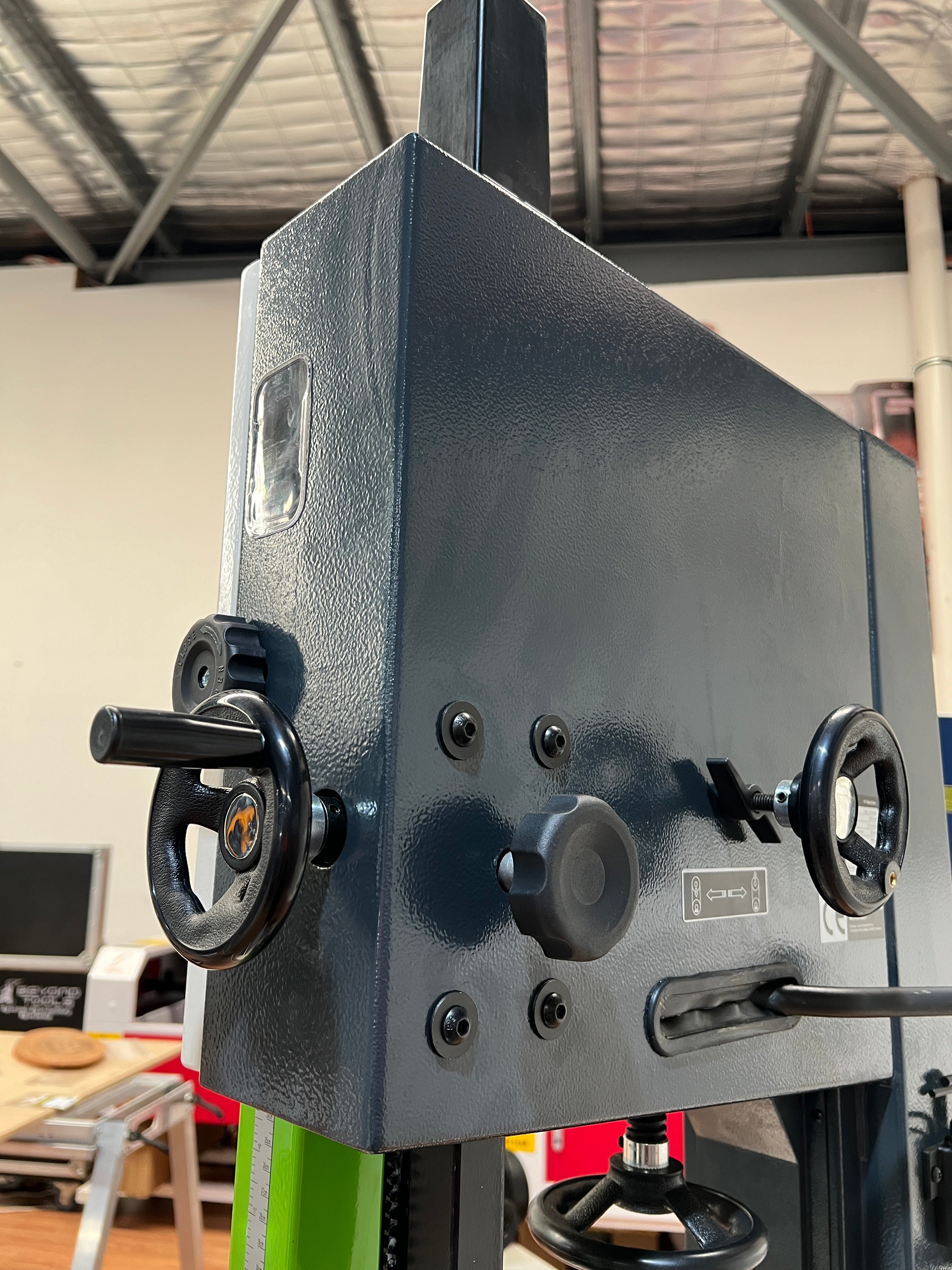

Blade Tensioning Quick Release Device
Blade Tensioning Quick Release Device
Lever to ensure quick release of blade tensioning when not in use to help prevent blade stretching and deforming the band saw tyres, which are likely made of rubber or urethane. A stretched blade will cause the operator to increase blade tension to compensate, increasing blade break risk.
De-tensioning your blade will extend the life of your blade.
De-tensioning your blade will extend the life of your blade.
Induction Motor
Table Fence Construction
150mm High Aluminium Rip Fence with Solid Round Bar Guide Rail and Solid Cast Locking Mechanism - Fence can be fitted to either side of the work table.
Mitre Gauge Included
Mitre Gauge Included
A mitre gauge is a device used for holding workpieces at a set angle while being cut on table saws, bandsaws or sanded on stationary disc sanders. The mitre gauge slides in a slot on the worktable (known as a mitre slot) on the machine being used.
Push Stick Included
Tilting Table
Tilting Table
A tilting table in a machine is a mechanical component designed to adjust the angle or orientation of a work surface or workpiece relative to the machine's axis of operation. This adjustable feature enables operators to position the workpiece at different angles, facilitating various machining processes such as drilling, milling, or grinding. Tilting tables are commonly found in machining centers, allowing for greater flexibility in manufacturing operations by accommodating different machining requirements and achieving precise workpiece positioning for optimal results.
Standard Inclusions
3607mm x 6 TPI Blade
Push Stick
Rip Fence Assembly
Mitre Gauge
Wrench
Manual
Push Stick
Rip Fence Assembly
Mitre Gauge
Wrench
Manual
Safety

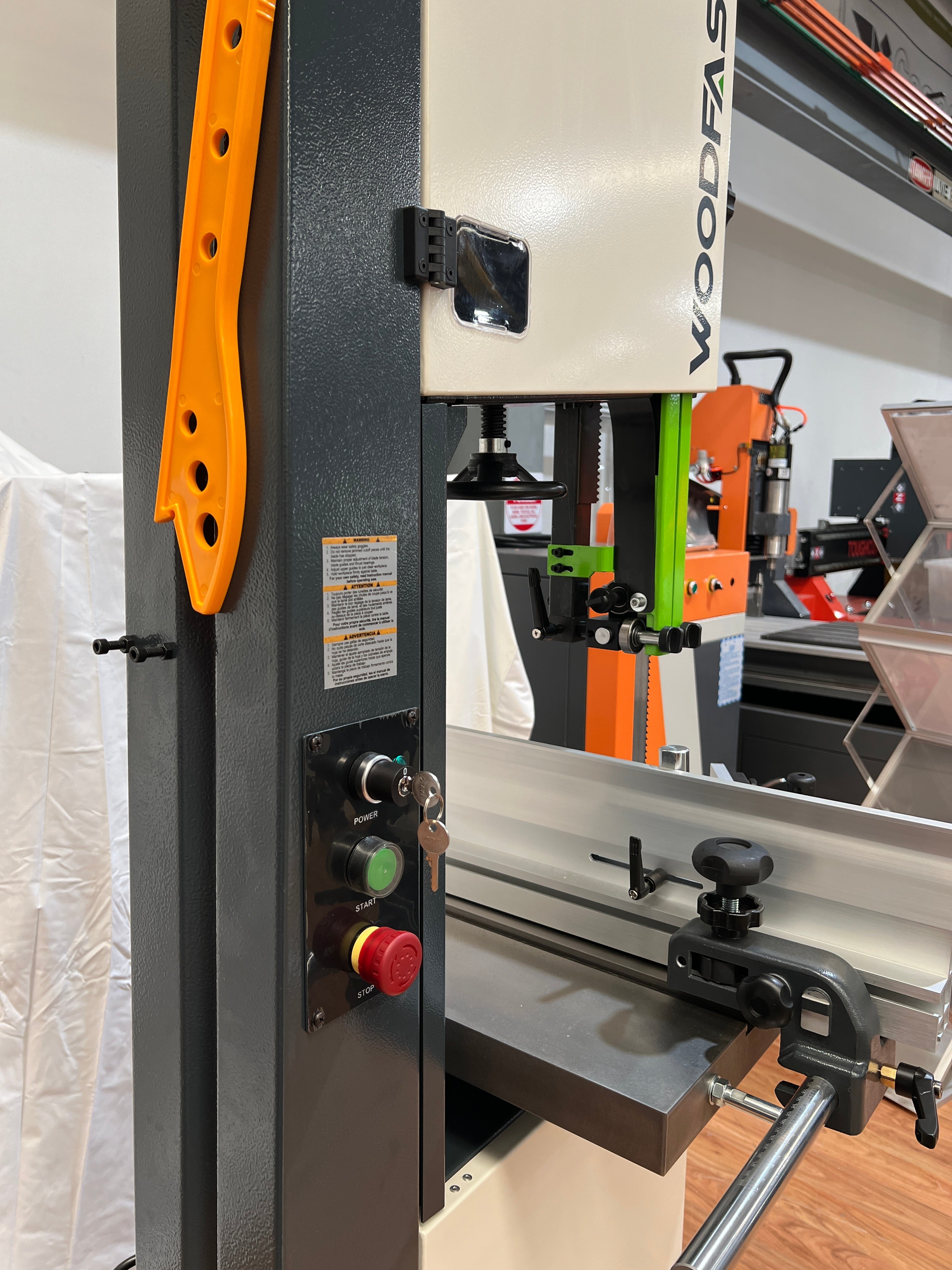

Safety Switch
Safety Switch
Safety switches are low-wear and low-maintenance when it comes to safe monitoring of doors or safe position monitoring.
Magnetic safety switches on all openings

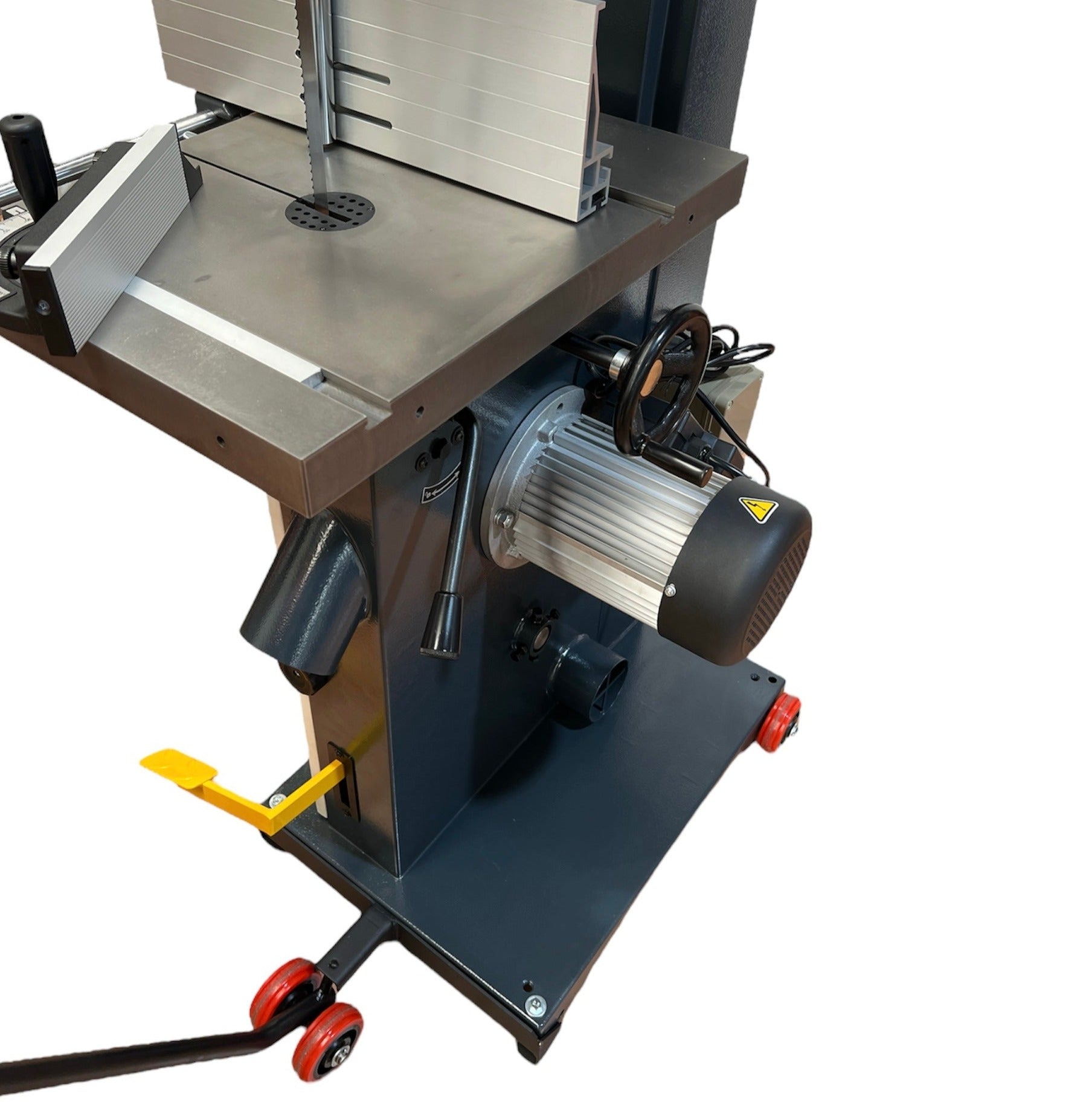

Foot Operated Brake
Foot Operated Brake
The foot operated brake mechanism is a safety feature on a machine whereby a brake is supplied with the machine. The brake is operated by applying the foot pedal. When the foot pedal is
applied, the power is removed from the motor.
In the case of a bandsaw foot operated brake the flywheel is slowed by the disc break when the power is removed from the motor when the brake is applied by foot.
applied, the power is removed from the motor.
In the case of a bandsaw foot operated brake the flywheel is slowed by the disc break when the power is removed from the motor when the brake is applied by foot.
Blade Guard
NVR (No Volt Release) Switch
NVR (No Volt Release) Switch
A no volt release (NVR) switch is valuable safety feature for power tools and machinery. If the power is cut, the unit will default to off, so the machinery will not automatically start again when the power is restored.

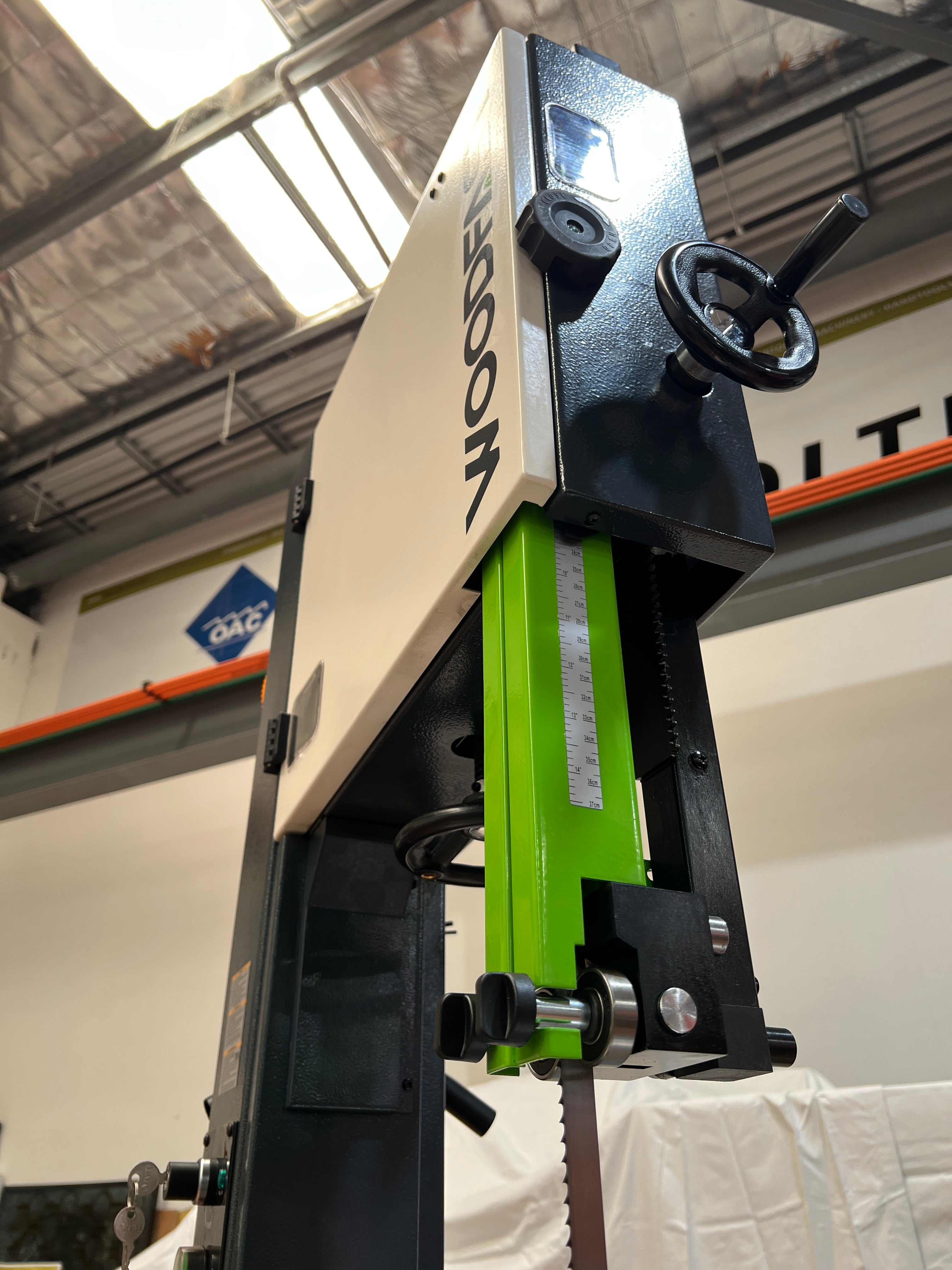

Rack & Pinion Blade Guide Height Adjustment
Rack & Pinion Blade Guide Height Adjustment
Rack and pinions are a mechanical device consisting of a bar (the rack), having teeth on one side that mesh with teeth on a small gear (the pinion) and are used for lifting mechanisms (vertical movement), horizontal movement, positioning mechanisms, stoppers and to permit the synchronous rotation of several shafts in general industrial machinery.
On machine tools, rack and pinion mechanisms are used to obtain rapid movements of worktables.
On machine tools, rack and pinion mechanisms are used to obtain rapid movements of worktables.

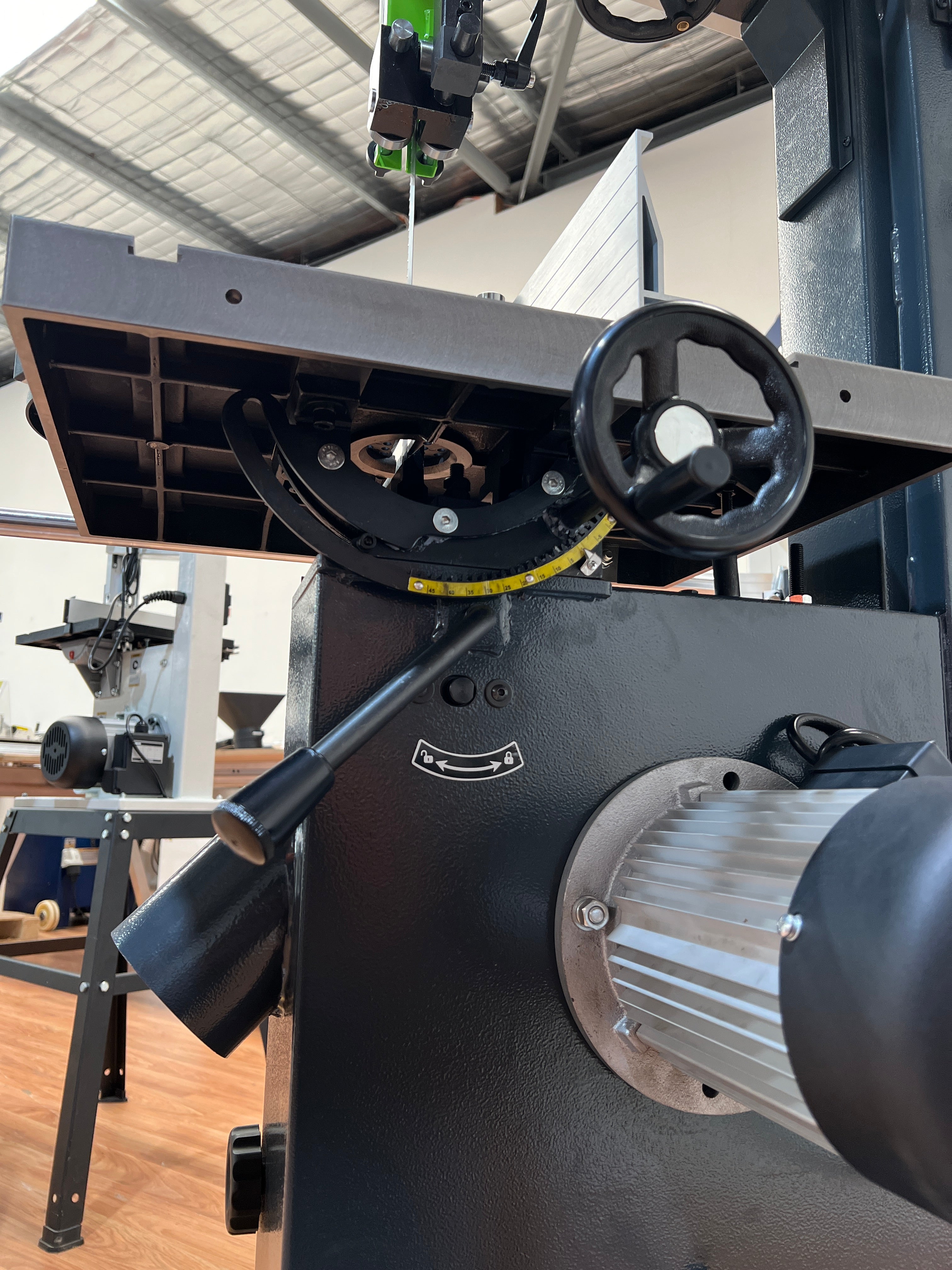

Rack & Pinion Table Angle Adjustment
Rack & Pinion Table Angle Adjustment
Rack and pinions are a mechanical device consisting of a bar (the rack), having teeth on one side that mesh with teeth on a small gear (the pinion) and are used for lifting mechanisms (vertical movement), horizontal movement, positioning mechanisms, stoppers and to permit the synchronous rotation of several shafts in general industrial machinery.
On machine tools, rack and pinion mechanisms are used to obtain rapid movements of worktables.
On machine tools, rack and pinion mechanisms are used to obtain rapid movements of worktables.
CE Certified
Dust Port
1 x 100mm Side Entry, 1 x 100mm Rear Entry
Workshop (Site) Info
Electrical Connection
10Amp Lead & Plug
Spare Parts / Consumables
Spare Parts / Consumables
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
3 Years (Home User) or 1 Year (Commercial User)
Use
Intended or designed for commercial use.
Packaging + Shipping
Shipping Length
770 mm
Shipping Width
550 mm
Shipping Height
1920 mm
Shipping Weight (Gross)
190.0 kg
Packaging
Packaging
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Wooden Box / Crate with Skid
Requires a Skid to Ship
Requires a Skid to Ship
Items over 32kg must be packed on a pallet or crate so they can easily be moved by forklift.
Requires a Forklift / Tail Lift to Unload
Requires a Forklift / Tail Lift to Unload
If you are ordering an item over 32kg - it will require a forklift or loading dock at the shipping destination. If you do not have these facilities at the shipping destination you will require a tail lift delivery. Please select this optional ADD-ON. Alternatively - you can collect from the depot.
Shipping Notes
This product exceeds hand unloading limits and requires a tail lift truck or forklift at the unloading location (Receivers end). This product requires a skid / pallet / crate in order to safely transport via road.
Whats Included
350mm (14") Professional Bandsaw 3HP 240V BS350E by Woodfast *New Arrival*
$2,839.00
