Type
Bandsaw
SKU
8001735
Part Number
BS400B
Brand
Woodfast
Size
400mm (16″)
Status
Available
Description
This is the ultimate bandsaw for the serious home workshop. It is versatile and well equipped. Standard features such as spring loaded tooless bearing blade guide (patented) on the top/bottom; quick blade tension with indicator; easy drift fence and gear driving tilting table and so much more! it puts industrial style features and very capacities within reach of the discerning woodworker who needs rock solid performance and reliability.
Features:
- Solid cast iron bandwheel and reliable dual support tension system
- Blade quick release with hefty flywheel spring to help the saw withstand greater forces required for tensioning wide blades
- Bearing blade guides simplify adjustments
- Oversize casting trunnions that lend solid foundation below and drived by gear for easy tilting
Additional Information
Model
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
240V 50Hz Single Phase
Motor Power (Input)
Motor Power (Input)
Input power means the full-load power input required to operate the motor.
2HP / 1500W
Motor Power (Output)
Motor Power (Output)
Output power means the maximum power that the motor puts out under ideal conditions.
2HP (1.5kW)

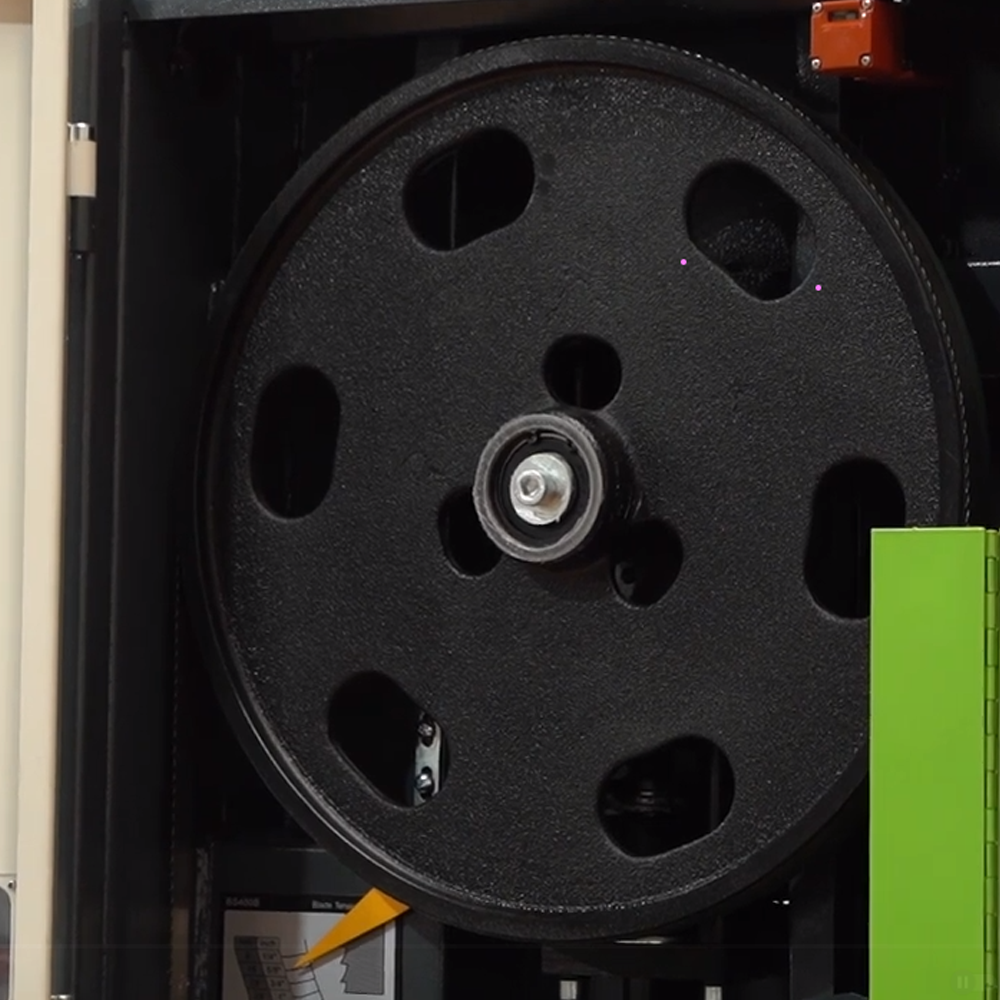

Bandwheel
Cast Iron (Balanced)
Bandwheel Diameter
400 mm
Blade Type
Continuous
Blade Length
3531 mm
Blade Width
6-30mm
Cutting Capacity - Height
280 mm
Throat Capacity
390 mm
Technical - Saw
Blade (Main) - Speed
1200m/Min.
Dimensions
Product Length
850 mm
Product Width
550 mm
Product Height
1760 mm
Product Weight (Net Weight)
185 kg
Country of Origin
Designed, Researched & Developed in
Australia
Manufactured in
China
Features

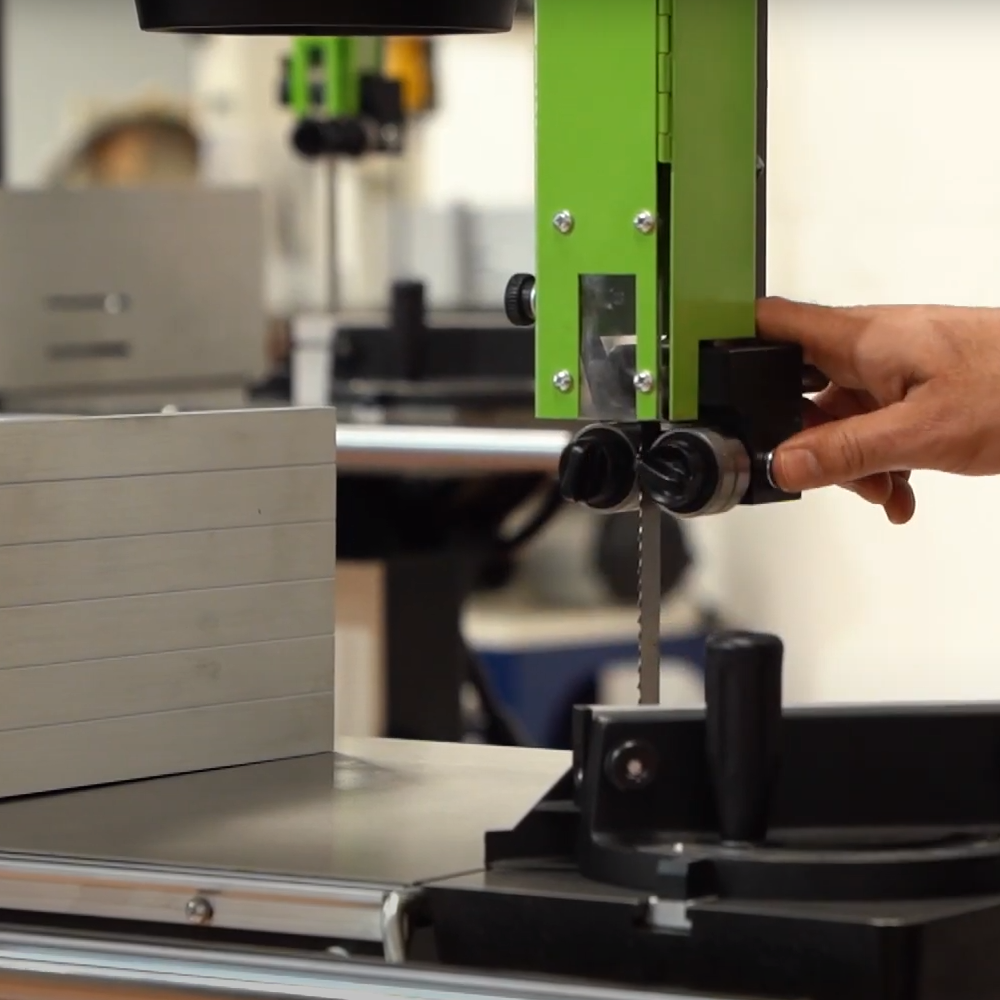

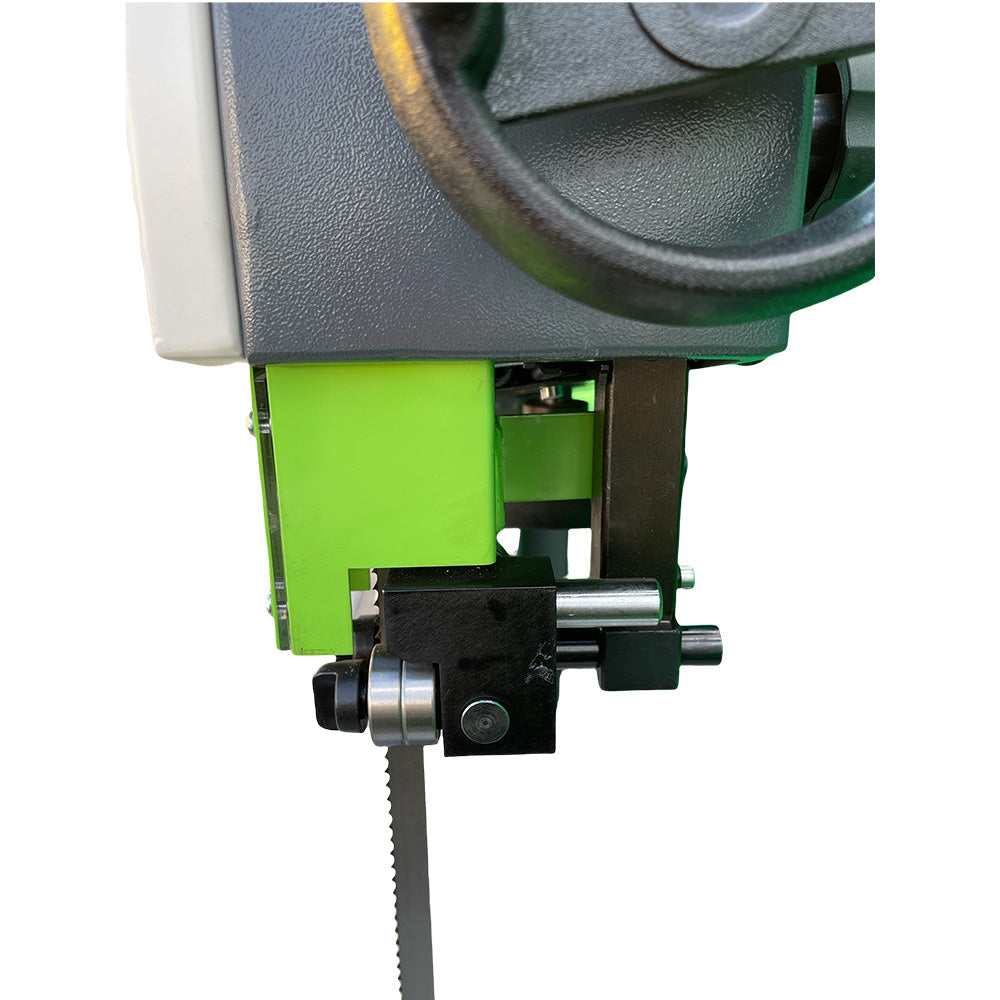

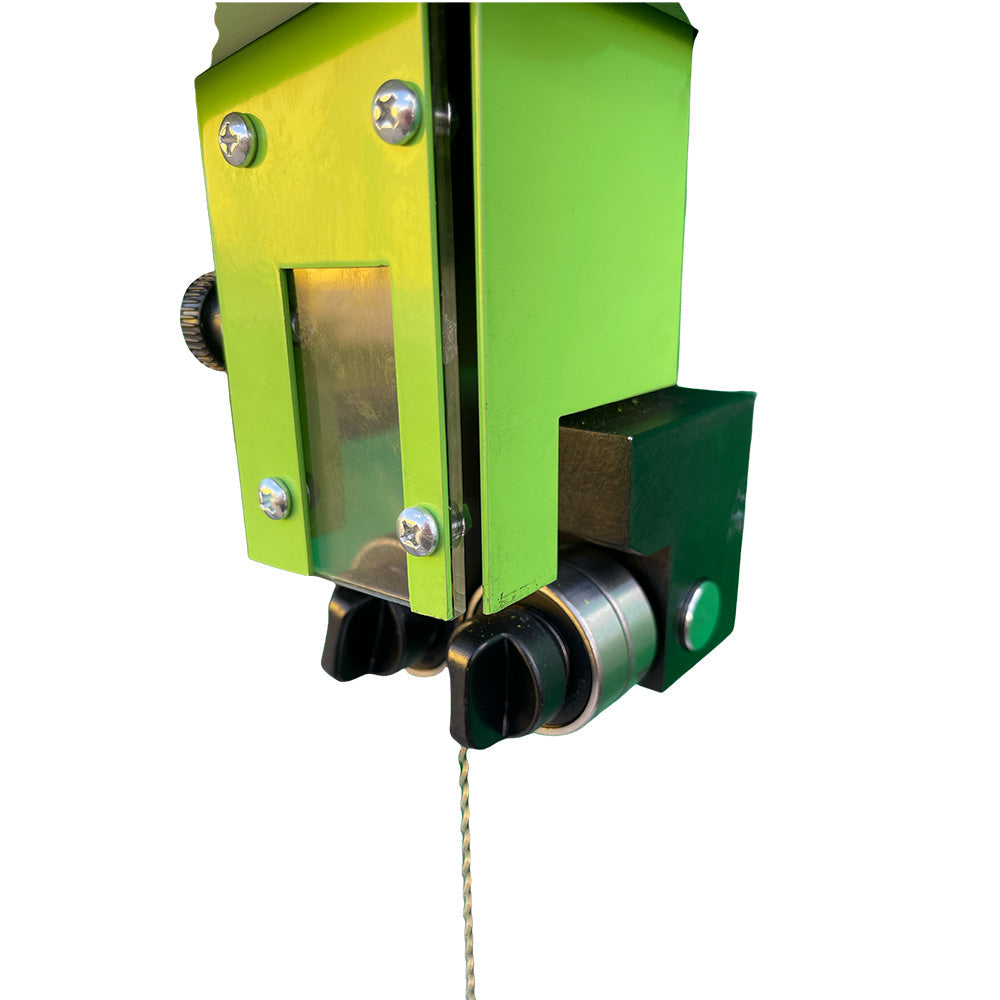

Tool Less Blade Guide System
Tool Less Blade Guide System
Tool Less Blade Guide System features quick adjusting, spring loaded, ball bearing blade guides for fast and easy setting to the blades.

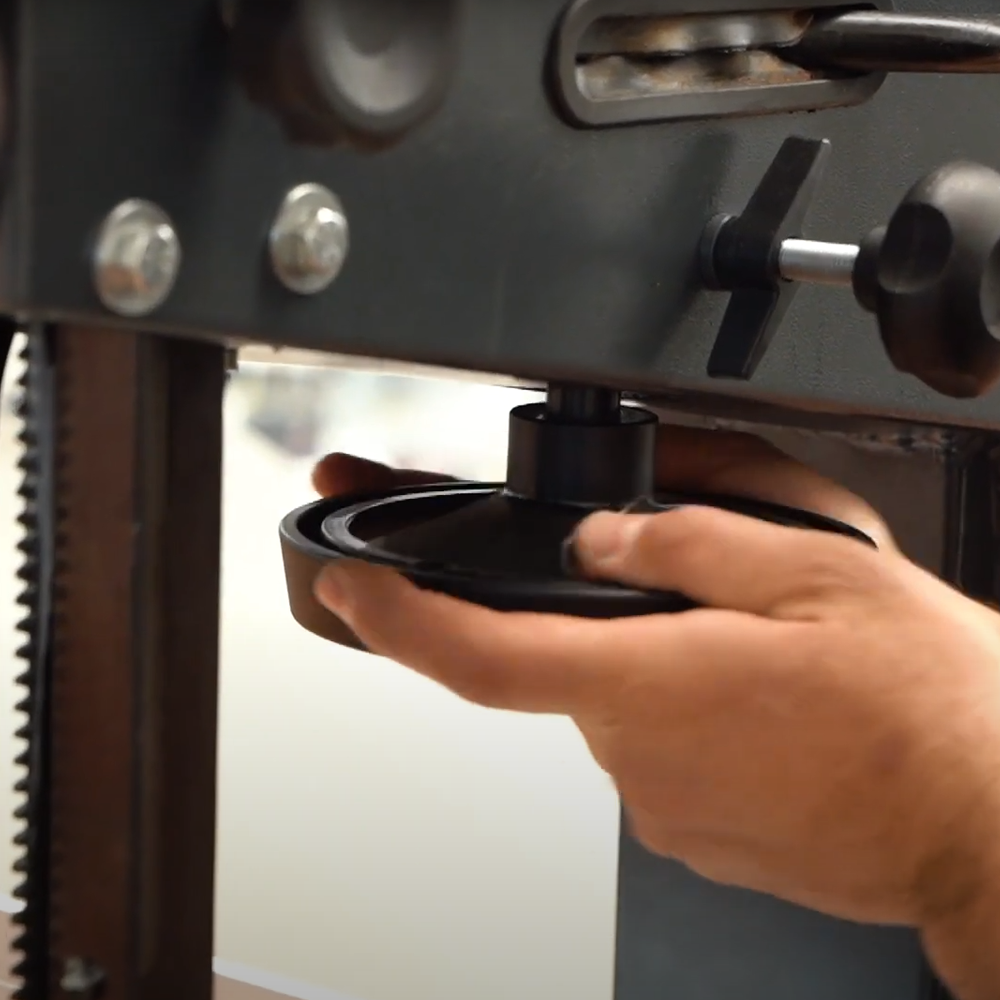

Blade Tensioning Quick Release Device
Blade Tensioning Quick Release Device
Lever to ensure quick release of blade tensioning when not in use to help prevent blade stretching and deforming the band saw tyres, which are likely made of rubber or urethane. A stretched blade will cause the operator to increase blade tension to compensate, increasing blade break risk.
De-tensioning your blade will extend the life of your blade.
De-tensioning your blade will extend the life of your blade.
Induction Motor

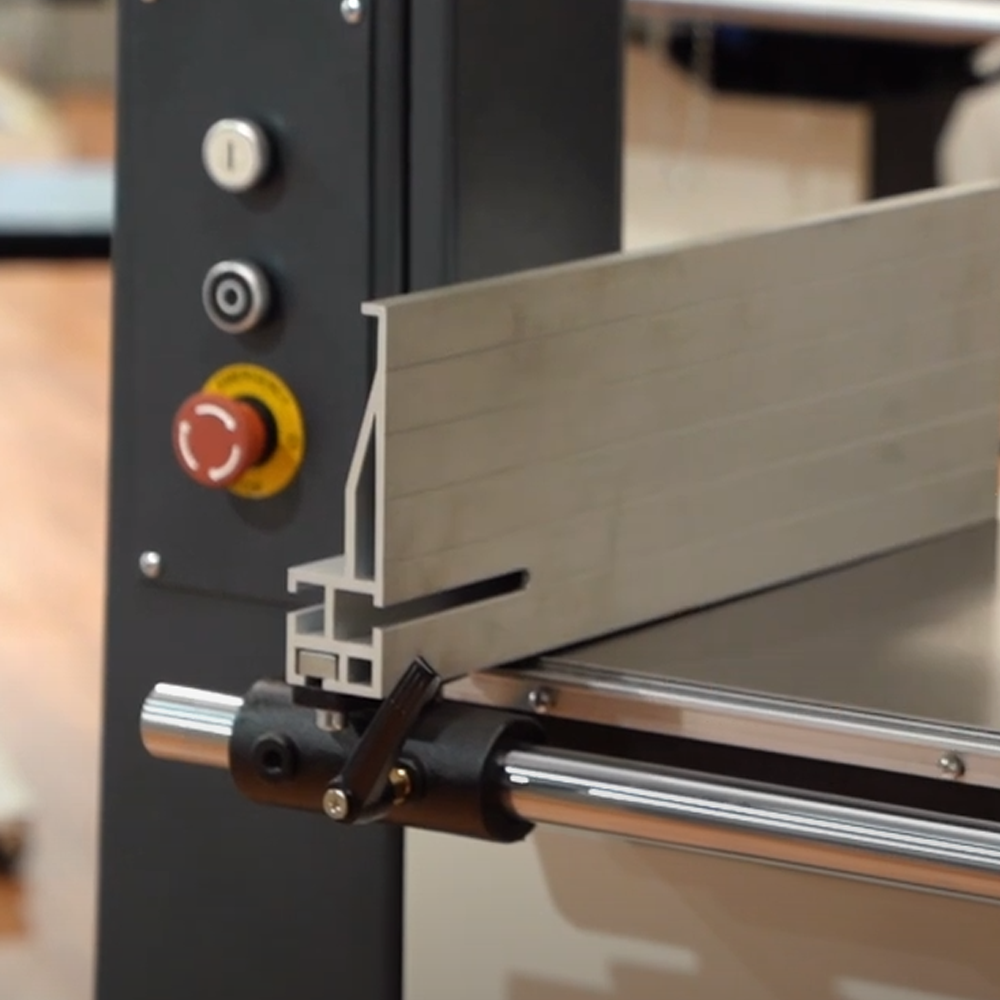

Table Fence Construction
150mm High Aluminium Rip Fence with Solid Round Bar Guide Rail and Solid Cast Locking Mechanism - Fence can be fitted to either side of the work table.

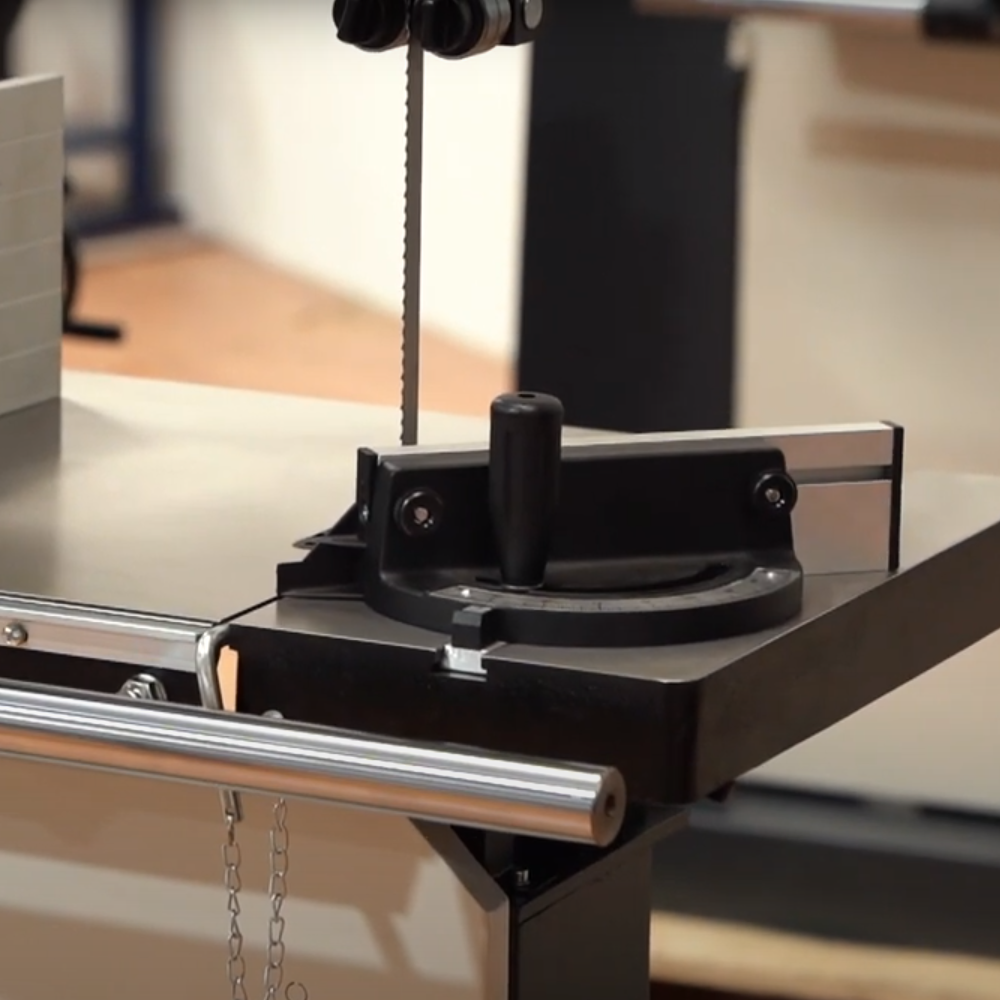

Mitre Gauge Included
Mitre Gauge Included
A mitre gauge is a device used for holding workpieces at a set angle while being cut on table saws, bandsaws or sanded on stationary disc sanders. The mitre gauge slides in a slot on the worktable (known as a mitre slot) on the machine being used.
Push Stick Included
Price Vs Quality
Quality
Premium
Safety
Safety Switch
Safety Switch
Safety switches are low-wear and low-maintenance when it comes to safe monitoring of doors or safe position monitoring.
Magnetic safety switches on all openings
Emergency Stop Switch
Emergency Stop Switch
An emergency stop switch is a safety mechanism used to shut off machinery in an emergency, when it cannot be shut down in the usual manner.

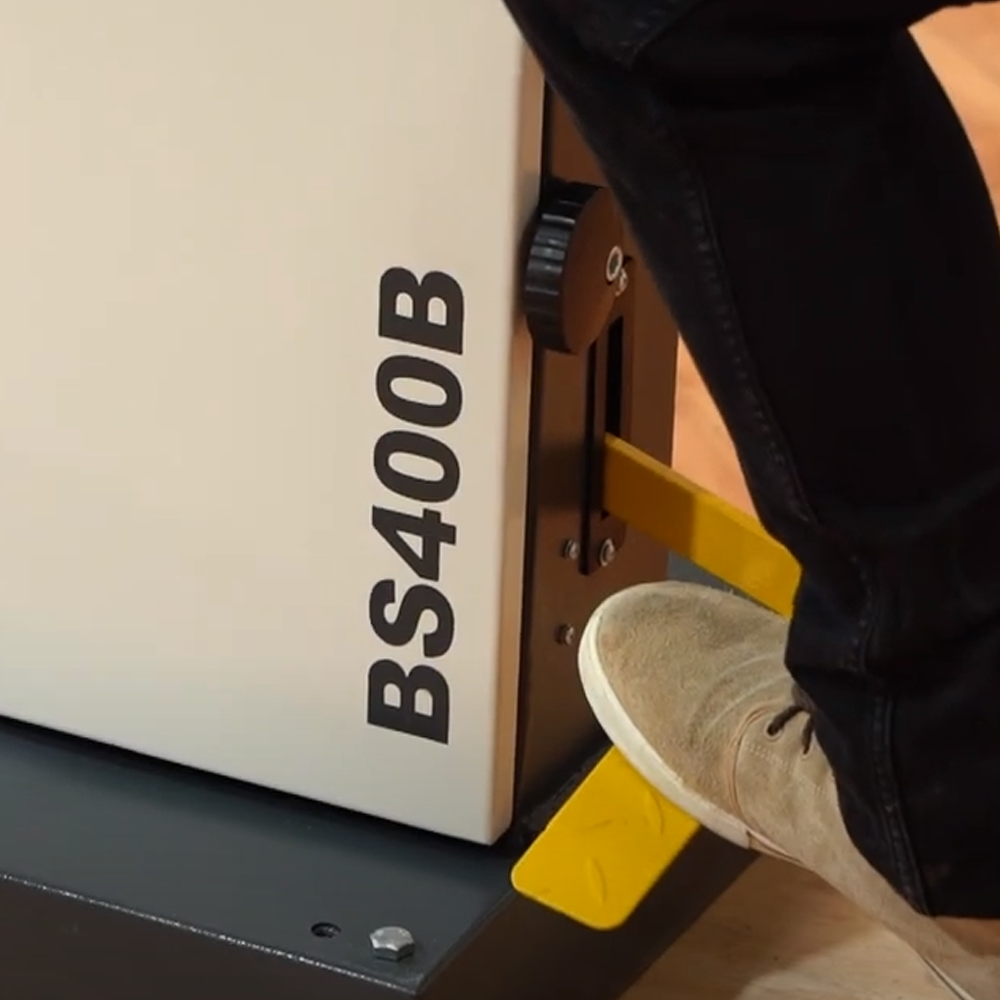

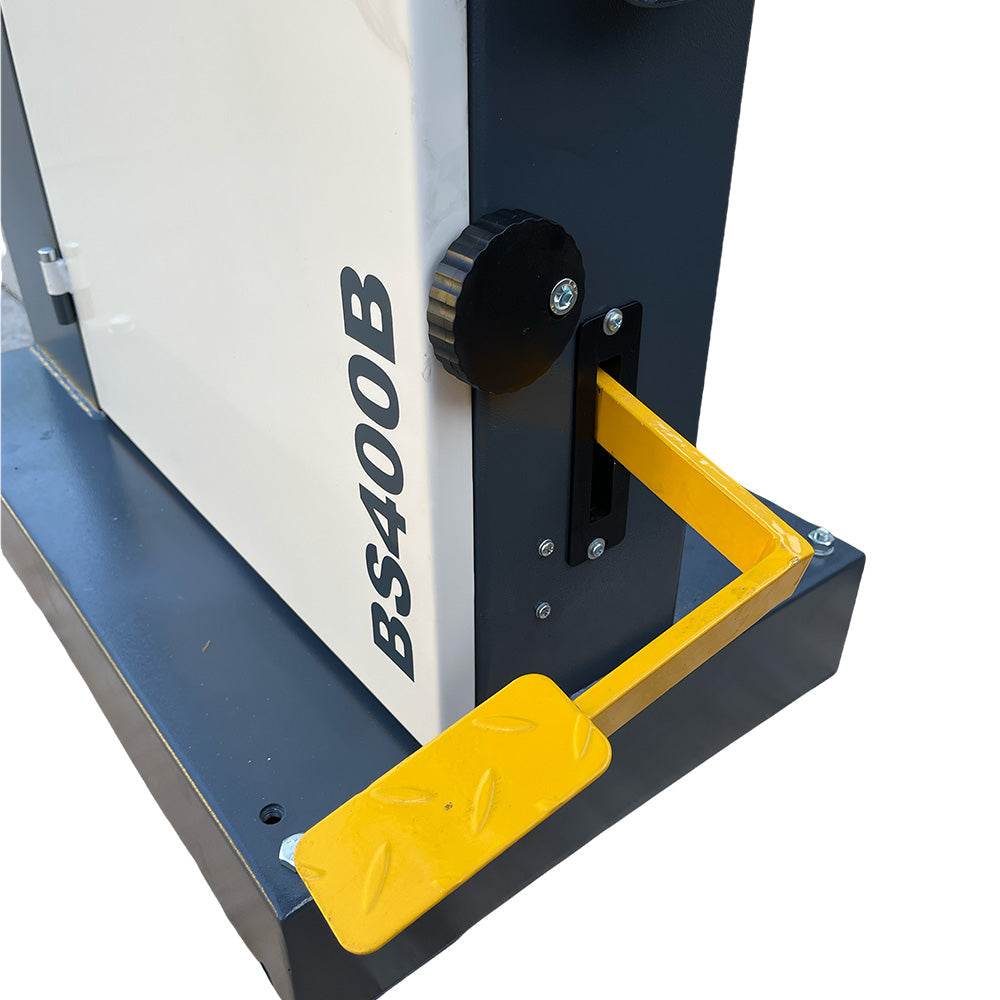

Foot Operated Brake
Foot Operated Brake
The foot operated brake mechanism is a safety feature on a machine whereby a brake is supplied with the machine. The brake is operated by applying the foot pedal. When the foot pedal is
applied, the power is removed from the motor.
In the case of a bandsaw foot operated brake the flywheel is slowed by the disc break when the power is removed from the motor when the brake is applied by foot.
applied, the power is removed from the motor.
In the case of a bandsaw foot operated brake the flywheel is slowed by the disc break when the power is removed from the motor when the brake is applied by foot.
Blade Guard
NVR (No Volt Release) Switch
NVR (No Volt Release) Switch
A no volt release (NVR) switch is valuable safety feature for power tools and machinery. If the power is cut, the unit will default to off, so the machinery will not automatically start again when the power is restored.
Rack & Pinion Blade Guide Height Adjustment
Rack & Pinion Blade Guide Height Adjustment
Rack and pinions are a mechanical device consisting of a bar (the rack), having teeth on one side that mesh with teeth on a small gear (the pinion) and are used for lifting mechanisms (vertical movement), horizontal movement, positioning mechanisms, stoppers and to permit the synchronous rotation of several shafts in general industrial machinery.
On machine tools, rack and pinion mechanisms are used to obtain rapid movements of worktables.
On machine tools, rack and pinion mechanisms are used to obtain rapid movements of worktables.

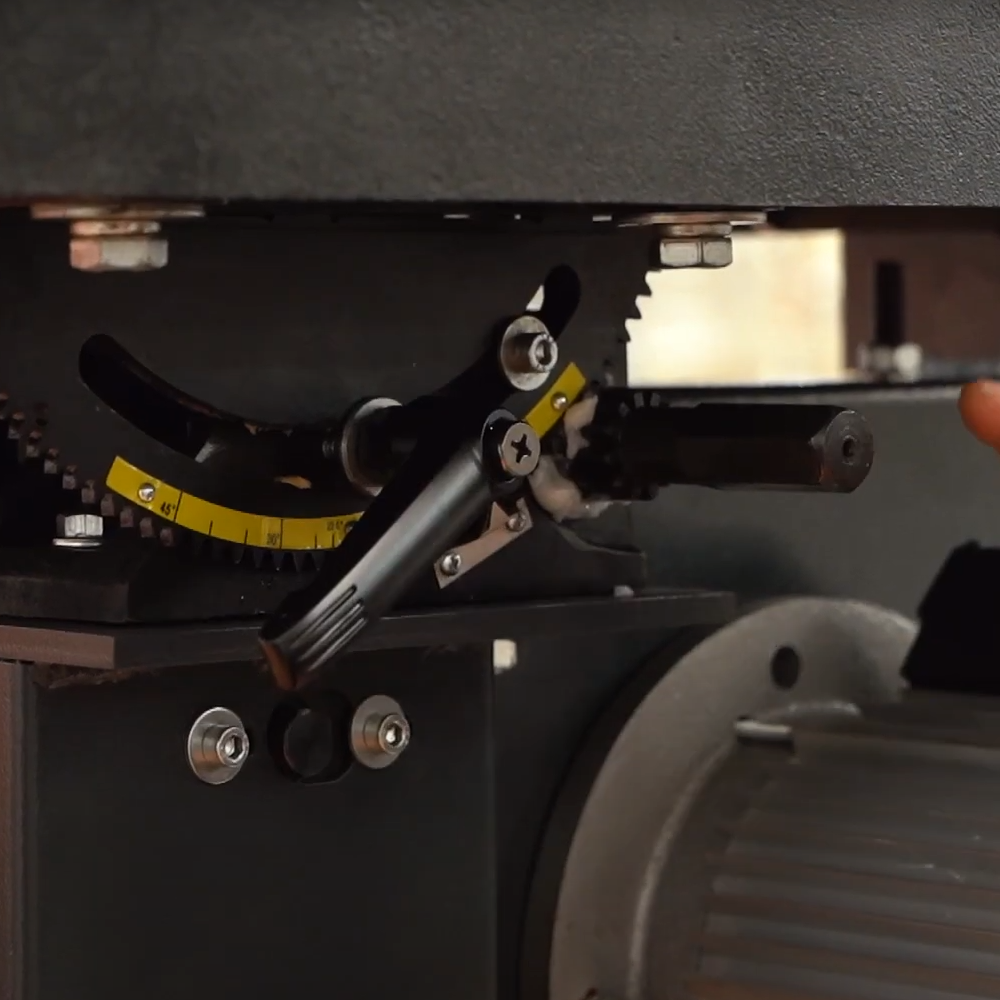

Rack & Pinion Table Angle Adjustment
Rack & Pinion Table Angle Adjustment
Rack and pinions are a mechanical device consisting of a bar (the rack), having teeth on one side that mesh with teeth on a small gear (the pinion) and are used for lifting mechanisms (vertical movement), horizontal movement, positioning mechanisms, stoppers and to permit the synchronous rotation of several shafts in general industrial machinery.
On machine tools, rack and pinion mechanisms are used to obtain rapid movements of worktables.
On machine tools, rack and pinion mechanisms are used to obtain rapid movements of worktables.
Dust Port
1 x 100mm (4") on side, 1 x 100mm (4") at rear
Workshop (Site) Info
Electrical Connection
10Amp Lead & Plug
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
3 Years (Home User) or 1 Year (Commercial User)
Packaging + Shipping
Shipping Length
1390 mm
Shipping Width
460 mm
Shipping Height
615 mm
Shipping Weight (Gross)
185.0 kg
Packaging
Packaging
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Wooden Box / Crate with Skid
Requires a Forklift / Tail Lift to Unload
Requires a Forklift / Tail Lift to Unload
If you are ordering an item over 32kg - it will require a forklift or loading dock at the shipping destination. If you do not have these facilities at the shipping destination you will require a tail lift delivery. Please select this optional ADD-ON. Alternatively - you can collect from the depot.
Shipping Notes
This product exceeds hand unloading limits and requires a tail lift truck or forklift at the unloading location (Receivers end). This product requires a skid / pallet / crate in order to safely transport via road.
Whats Included

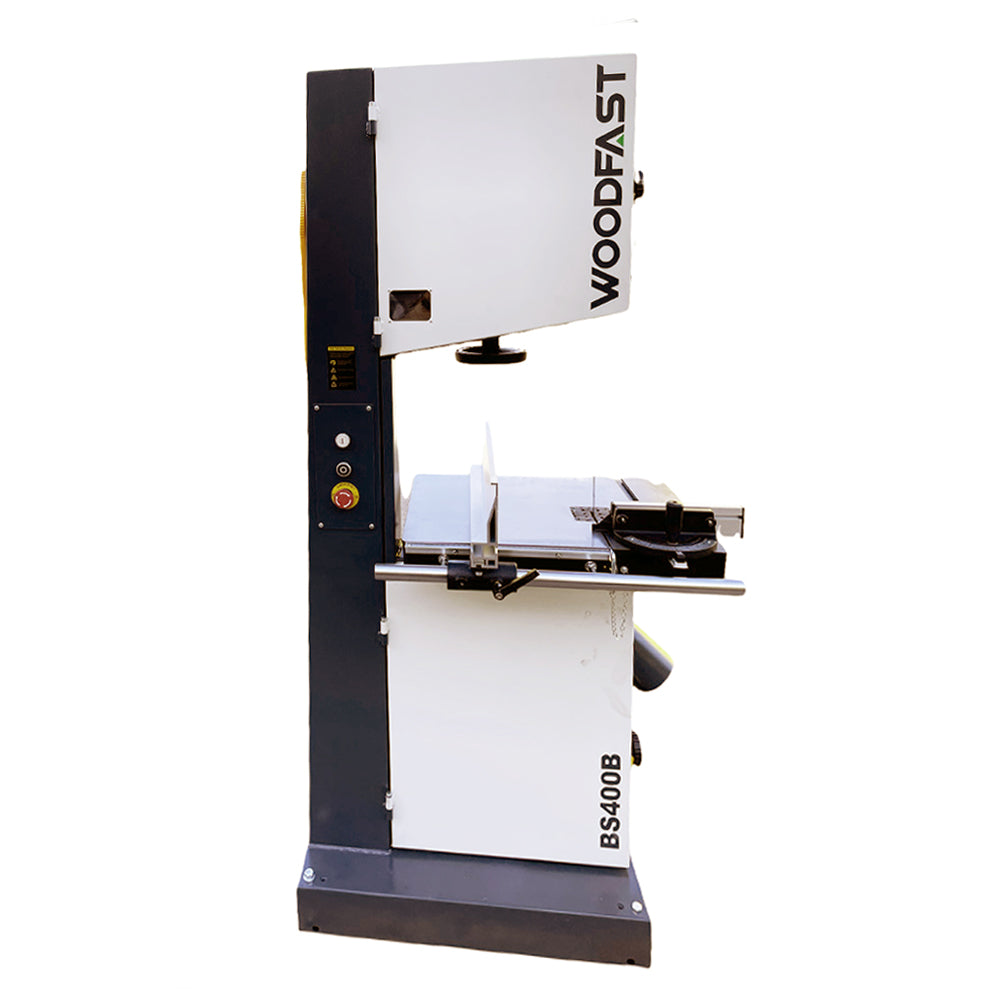

400mm (16") Bandsaw 2HP 240V BS400B by Woodfast
$2,895.00
